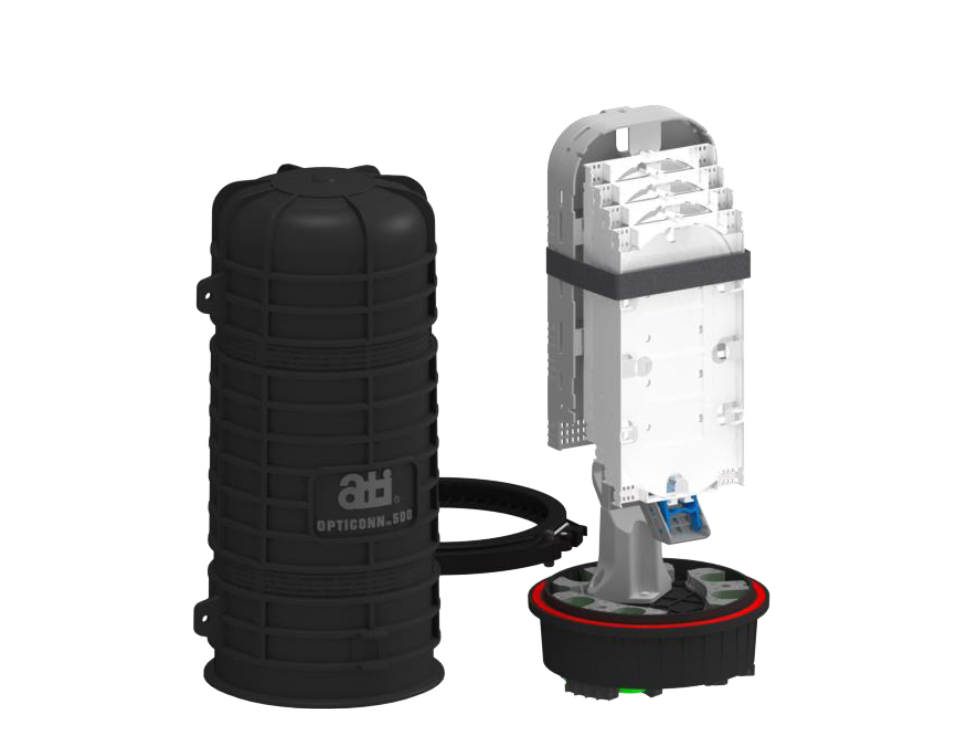

Product Features

Up to 6 Cable Entry Points, each port capable of 1-4 cables

Gel Seal Designed for 0.23" to 0.9" of fiber cable diameters

Optional Short Tray(s): up to 48 Single Splices per Tray

Optional Tall Tray(s): up to 48 Single or 144~288 Ribbon Splices per Tray

Up to 3 Mid-Span Cable Capacity

Flexible Hinge Design for Mix Use of Short and Tall Trays

Additional Fiber Slack Basket for increased storage capacity

Strand & Pole Mounting Bracket Options

Applications

Outdoor Fiber Optic Cable Splicing and Cable Management

Aerial, Underground, or Direct Bury

Mid-span Cable and Cut-end Cable Entry

Single Fusion and Mass Fusion (Ribbon) Fiber Splicing

Cable Purpose(s): Back-bone, Lateral, and Drop

Cable Type(s): Armored, ADSS, Loose Tube, Ribbon, Micro Cable, Flat or Round Drop Cable

Optical Splitters and/or Multiplexers Integration

PON

DAA

Accessories

Standard Accessories

• Dome with O ring

• Locking Clamp

• x2 Splice Trays

• Hose Clamps

• Cable Ties

• Velcro Strap

• Buffer Felt

Optional Accessories

• Short Tray

• Tall Tray

• Fiber Slack Storage Basket

• Tray Hinge Adapters

• Wedge Tray Stop

• Aerial Mount Bracket

• Pole Mount Fixture

• Pressure Valve Kit

• Grounding Kit

• Bench Clamp Fixture

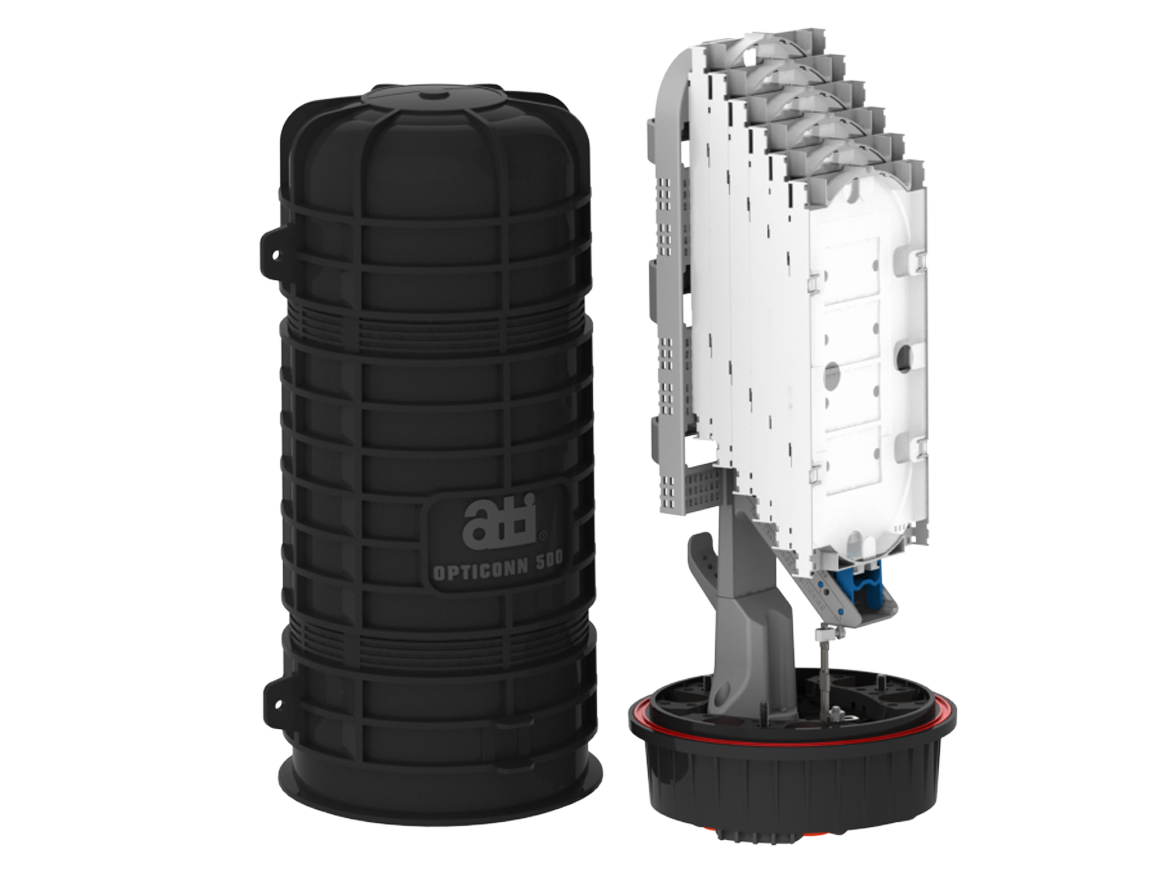

Opticonn 500 4TSS

6 Cable Entry Ports

Compression Gel Seals

Multi-Cable Entry Grommets

Installer Friendly

4 Tall tray configurations, 17.0mm tray height

Additional Slack Storage Basket included

192 Single fusion splices or 576~1152* (12)Ribbon Splices

Opticonn 500 4TSS.jpg

Opticonn 500 6SSS

6 Cable Entry Ports

Compression Gel Seals

Multi-Cable Entry Grommets

Installer Friendly

6 Short tray Configuration, 12.5mm tray height

Fiber Slack Storage Basket included

Up to 288 Single fusion splices

Opticonn 500 6SSS.jpg

Opticonn 500 6TNS

6 Cable Entry Ports

Compression Gel Seals

Multi-Cable Entry Grommets

Installer Friendly

6 Tall tray Configuration, 17.0mm tray height

288 Single fusion splices or 864~1728* (12) Ribbon Splices

Optional tray hinge adapters for FOSC 450 / Coyote Closures

Opticonn 500 6TNS.jpg

Opticonn 500 8SNS

6 Cable Entry Ports

Compression Gel Seals

Multi-Cable Entry Grommets

Installer Friendly

8 Short tray Configuration, 12.5mm tray height

384 Single fusion splices

Optional tray hinge adapters for FOSC 450 / Coyote Closures

Opticonn 500 8SNS.jpg

Optional Accessories

Part Number	Specification	Picture
STA-2-1	Opticonn 500, Short Tray Assembly, 12.5mm, Prt, with Tray Hinge Adapter and accessories(cable ties & buffer felt & splice holder)
TTA-2-1	Opticonn 500, Tall Tray Assembly, 17mm, Prt, with Tray Hinge Adapter and accessories(cable ties & buffer felt & splice holder)
AS-2-1	Opticonn 500, Additional Slack Storage Basket
UT-3-1	Opticonn 500, Universal Tray Hinge Adapter
WT-2-1	Opticonn 500, Wedge Tray Stop
OC500-AMK	Opticonn 500, Aerial Mount Kit
OC500-PMK	Opticonn 500, Pole Mount Kit
OC500-GK	Opticonn 500, Grounding Kit
PV-2-1	Pressure Valve Kit
BC-2-1	Bench Clamp Fixture

Ordering Information Part Number Matrix

O500-T①②S③-R④-W⑤-P⑥-G⑦

①Select QTY of Splice Tray ⑤Select QTY of Wedge Tray Stop

2=2pcs 0=None

4=4pcs 1=1pcs

…… 2=2pcs

*(See note 1) ……

②Select Splice Tray

T=Tall Tray ⑥Select QTY of Pressure Valve Kit

S= Short Tray 0=None

1=1pcs

③Select QTY of Storage Tray 2=2pcs

SS=Single Storage Tray ……

NS=No Storage Tray

④Select QTY of Universal Tray Hinge Adapter ⑦Select QTY of Grounding Kit

0=None 0=None

1=1pcs 1=1pcs

2=2pcs 2=2pcs

…… ……

Note 1: Max. loaded Configuration Assembly*	4TSS:4pcs Tall trays with additional slack storage
	6SSS:6pcs Short trays with additional slack storage
	6TNS:6pcs Tall trays and regular slack storage only
	8SNS:8pcs Short trays and regular slack storage only

Splice Tray and Additional Slack Basket Options

Part Number	Specification	Notes
Opticonn500-4TSS	Opticonn 500 4TSS Splice tray (270x138x17mm)	Comes with standard w/ 2 Tall Splice trays, extra slack basket, and Standard Accessories
Opticonn500-6SSS	Opticonn 500 6SSS Splice tray (270x138x12.5mm)	Comes with standard w/ 2 Short Splice trays, extra slack basket, and Standard Accessories
Opticonn500-6TNS	Opticonn 500 6TNS Splice tray (270x138x17mm)	Comes with standard w/ 2 Tall Splice trays, and Standard Accessories
Opticonn500-8SNS	Opticonn 500 8SNS Splice tray (270x138x12.5mm)	Comes with standard w/ 2 Short Splice trays and Standard Accessories
