100G QSFP28 DWDM ZR

Accelight’s 100Gbps QSFP28 DWDM ZR series single mode transceiver module is designed for use in duplex optical data communications. This module is designed for single mode optical fiber and operates at a data rate of 100Gbps at the nominal DWDM wavelength from 1529.55nm to 1560.61nm as specified by the ITU-T. This module can convert 4 channels of 25Gbps (NRZ) electrical input data to 1 channel of 100Gbps (PAM4) optical signal, and also can convert 1 channel of 100Gbps (PAM4) optical signal to 4 channels of 25Gbps (NRZ) electrical output data. The electrical interface of the module is compliant with the OIF CEI-28G-VSR and QSFP28 MSA. It is designed to deploy in the DWDM networking equipment in metropolitan access and core networks.

Product Details

Product Features

Supports 100Gbps

Single 3.3V Power Supply

Available in all C-Band Wavelengths on the 100GHz DWDM ITU Grid

Power dissipation < 5.5W

80km reach over SMF with EDFA&DCM

RoHS compliant

4x25Gbps Electrical interface

Duplex LC connector

Commercial case temperature range of 0°C to 70°

I2C interface with integrated Digital Diagnostic Monitoring
Applications

HFC/DAA

Ethernet networks

CPRI/Wireless

DCI

Other optical links
Ordering information

Note: Customized version. XX refers to DWDM Wavelength channel 21~60 as ITU-T specified, please refer the following table for detailed center wavelength information.
Recommended Operating Conditions
General Electrical Characteristics

High Speed Electrical Input Characteristics
High Speed Electrical Output Characteristics
Optical Characteristics

High Speed Optical Transmitter Characteristics @TP2 Test Point
High Speed Optical Receiver Characteristics @TP3 Test Point

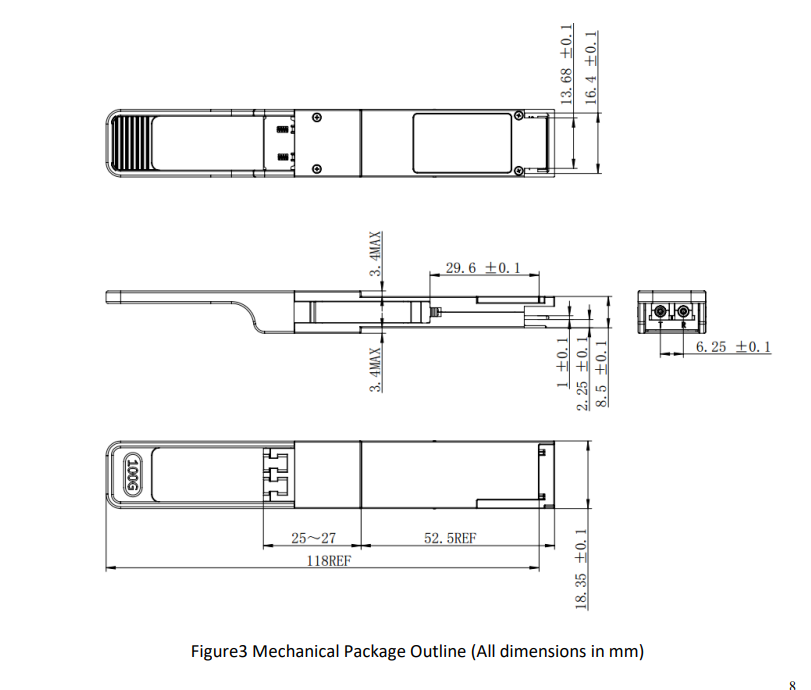

Mechanical Specifications
