QSFP28 100G AOC
Product Details
  • Product Features
    Supports 103.1Gbps aggregate bit rates
    Single 3.3v power supply
    Maximum link length of 70m links on OM3 multimode fiber
    Hot-pluggable QSFP28 footprint
    Case operating temperature range:0°C to 70°C
    Power dissipation < 2.5 W
    I2C Interface with Integrated Digital Diagnostic Monitoring
  • Applications
    100G Ethernet
    Infiniband QDR
    Fiber channel
    HPC Interconnections
  • Standards
    Compliant to SFF-8431
    RoHS Compliant.
  • Ordering information

    Ordering information

    Part Number

    Data rate

    Length

    Temp.

    DDMI

    AAQPQP100Cxxx

    103.1Gbps

    <70m

    0~70°C

    Yes

    Note: xxx denotes the AOC length with unit meter.eg: 001 denotes 1m.


  • Performance Specifications


    Transmitter

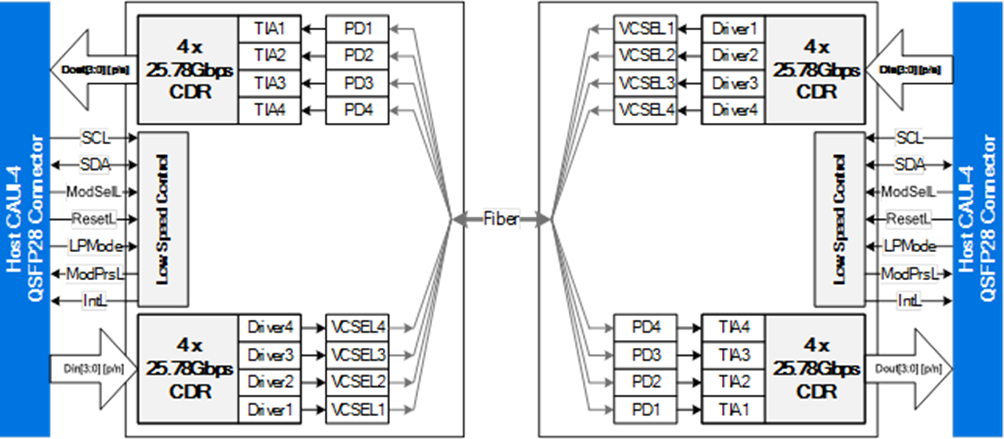

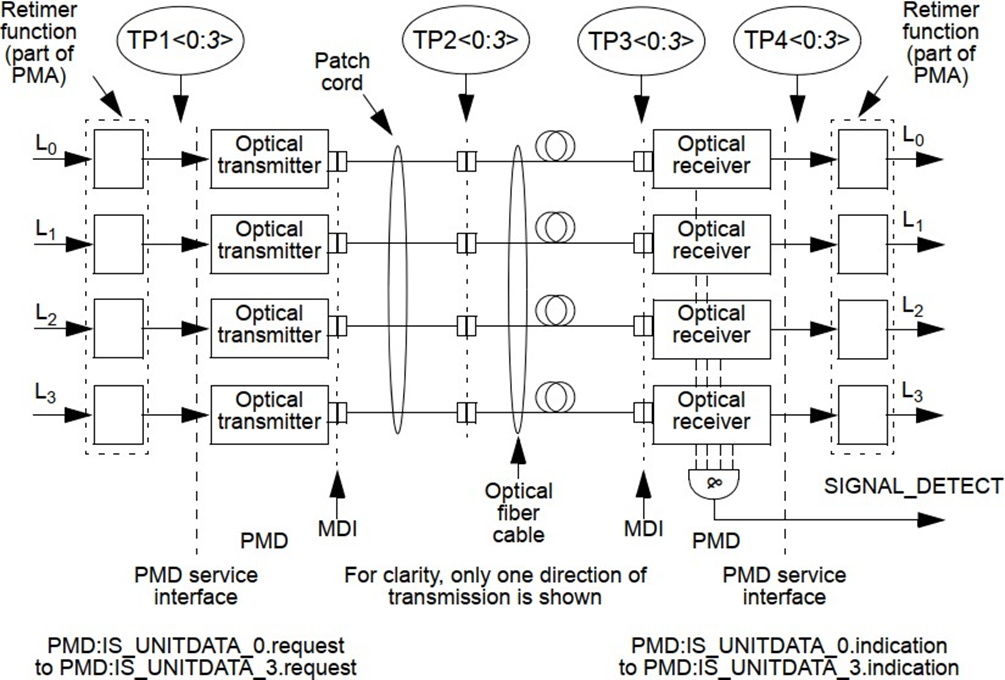

    As shown in Figure 1, the transmitter path of the AOC (each end) contains a 4x25.78Gbps CAUI-4 electrical input with equalization (EQ) block, VCSEL laser drivers, VCSEL lasers and diagnostic monitor.



    Receiver

    As shown in Figure 1, the receiver path of the AOC (each end) contains four PIN photodiodes, trans- impedance amplifiers (TIA) and 4x25.78G CAUI-4 compliant electrical output blocks.




    High Speed Electrical Signal Interface

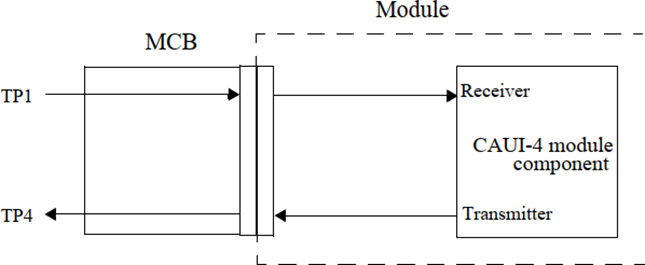

    The interface between QSFP28 module and ASIC/SerDes is shown in Figure 2. The high speed signal lines are internally AC-coupled and the electrical inputs are internally terminated to 100 ohms’ differential. All transmitter and receiver electrical channels are compliant to C2M CAUI-4 specifications per IEEE 802.3bm.



    Control Signal Interface

    The control signal interface is compliant with QSFP28 MSA. The following pin is provided to control module or display the module status: ModSelL, ResetL, LPMode, IntL and ModPrsL. In addition, there is an industry standard two wire serial interface scaled for 3.3V LVTTL. The definition of control signal interface and the registers of the serial interface memory are defined in the Control Interface & Memory Map section.



    Handling and Cleaning

    Exposure to current surges and overvoltage events can cause immediate damage to the AOC module. Observe the precautions for normal operation of electrostatic discharge sensitive equipment; Attention shall also be paid to limiting AOC module exposure to conditions beyond those specified in the absolute maximum ratings.

    Absolute Maximum Ratings

    Parameter

    Symbol

    Min.

    Typ.

    Max.

    Unit

    Note

    Storage   Temperature

    Ts

    -40

    -

    85

    ºC


    Relative   Humidity

    RH

    5

    -

    85

    %


    Power   Supply Voltage

    VCC

    -0.5

    3.3

    3.6

    V


    Recommended Operating Conditions

    Parameter

    Symbol

    Min.

    Typ.

    Max.

    Unit

    Note

    Case   Operating Temperature

    Tcase

    0

    -

    70

    ºC

    Without   air flow

    Power Supply Voltage

    VCC

    3.135

    3.3

    3.465

    V


    Power Supply Noise

    ICC

    -


    25

    mVpp


    Receiver Differential Data Output Load



    100


    ohm


    General Electrical Characteristics


    Parameter

    Symbol

    Min.

    Typical

    Max.

    Unit

    AOC Power Consumption   (each end)




    2.5

    W

    AOC Power Supply Total   Current (each end)




    758

    mA

    AC Coupling Internal   Capacitor



    0.1


    μF




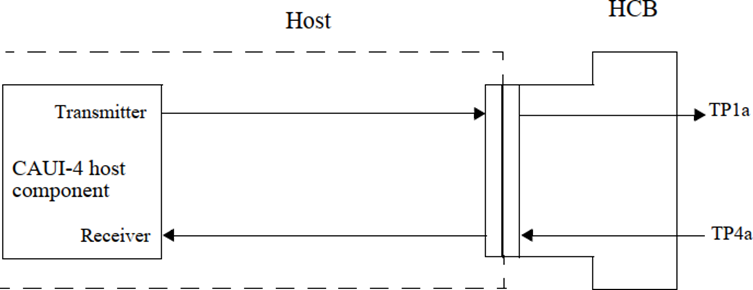

    High Speed Electrical Input Characteristics

    Parameter

    Test

    Point

    Min.

    Typical

    Max.

    Unit

    Signaling   Rate per Lane

    TP1


    25.78125±100ppm


    Gbps

    Differential Peak-Peak Input Voltage   tolerance

    TP1a

    900



    mV

    Differential   Input Return Loss

    TP1

    Equation(83E-5)



    dB

    Common to Common Mode Input Return Loss

    TP1

    Equation(83E-6)



    dB

    Differential Termination Mismatch

    TP1



    10

    %

    Single-ended   Voltage Tolerance Range

    TP1a

    -0.4


    3.3

    V

    DC   Common-mode Output Voltage

    TP1

    -350


    2850

    mV

    Module   Stressed Input Test

    TP1a





    Eye   Width



    0.46


    UI

    Applied Peak-Peak Sinusoidal Jitter



    Table   88-13



    Eye   Height



    95


    mV

    High Speed Electrical Output Characteristics

    Parameter

    Test Point

    Min.

    Typical

    Max.

    Unit

    Signaling Rate   per Lane

    TP4


    25.78125±100ppm


    Gbps

    AC Common-mode   Output Voltage (RMS)

    TP4



    17.5

    mV

    Differential   Peak-to-peak Output Voltage

    TP4



    900

    mV

    Eye Width

    TP4

    0.57



    UI

    Eye Height, Differential

    TP4

    228



    mV

    Vertical Eye Closure

    TP4



    5.5

    dB

    Differential Output Return   Loss

    TP4

    Equation(83E-2)




    Common to Differential Mode Conversion   Return Loss

    TP4

    Equation(83E-3)




    Differential   Termination Mismatch

    TP4



    10

    %

    Transition Time (20% ~80%)

    TP4



    12

    ps

    DC Common Mode   Voltage

    TP4

    -350


    2850

    mV

    Electrostatic Discharge (ESD)

    The AAQPQP100CXXX is compatible with the ESD requirements described in the Regulatory Compliance Table. However, in the normal processing and operation of AOC, the following two types of situations need special attention.

    Case I: Before inserting the AOC into the rack meeting the requirements of QSFP28 MSA, ESD preventive measures must be taken to protect the equipment. For example, the grounding wrist strap, workbench and


    floor should be used wherever the AOC is handled.

    Case II: After the AOC is installed, the electrostatic discharge outside the chassis of the host equipment shall be within the scope of system level ESD requirements. If the optical interface of the AOC is exposed outside the host equipment cabinet, the AOC may be subject to equipment system level ESD requirements.

    Electromagnetic Interference (EMI)

    Communication equipment with AOC is usually regulated by FCC in the United States and CENELEC EN55032 (CISPR 32) in Europe. The compliance of AAQPQP100CXXX with these standards is detailed in the regulatory compliance table. The metal shell and shielding design of AAQPQP100CXXX will help equipment designers minimize the equipment level EMI challenges they face.

    Flammability

    AAQPQP100CXXX AOC meets UL certification requirements, its constituent materials have heat and corrosion resistance, and the plastic parts meet UL94V-0 requirements.

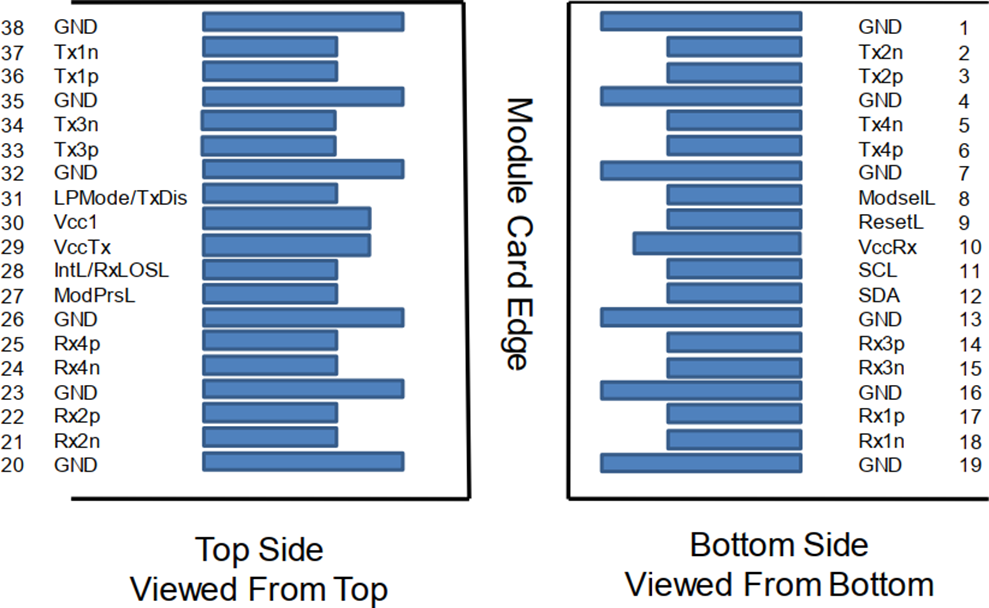

    QSFP28 Electrical Pad Layout


    Pin Assignment

    Pin

    Logic

    Symbol

    Description

    Plug

    Sequence4

    Notes

    1


    GND

    Ground

    1

    1

    2

    CML-I

    Tx2n

    Transmitter Inverted Data Input

    3


    3

    CML-I

    Tx2p

    Transmitter Non-Inverted Data Input

    3


    4


    GND

    Ground

    1

    1

    5

    CML-I

    Tx4n

    Transmitter Inverted Data Input

    3


    6

    CML-I

    Tx4p

    Transmitter Non-Inverted Data Input

    3


    7


    GND

    Ground

    1

    1

    8

    LVTTL-I

    ModSelL

    Module Select

    3


    9

    LVTTL-I

    ResetL

    Module Reset

    3


    10


    VccRx

    +3.3V Power Supply Receiver

    2

    2

    11

    LVCMOS- I/O

    SCL

    2-wire Serial Interface Clock

    3


    12

    LVCMOS- I/O

    SDA

    2-wire Serial Interface Data

    3


    13


    GND

    Ground

    1

    1

    14

    CML-O

    Rx3p

    Receiver Non-Inverted Data Output

    3


    15

    CML-O

    Rx3n

    Receiver Inverted Data Output

    3


    16


    GND

    Ground

    1

    1

    17

    CML-O

    Rx1p

    Receiver Non-Inverted Data Output

    3


    18

    CML-O

    Rx1n

    Receiver Inverted Data Output

    3


    19


    GND

    Ground

    1

    1

    20


    GND

    Ground

    1

    1

    21

    CML-O

    Rx2n

    Receiver Inverted Data Output

    3


    22

    CML-O

    Rx2p

    Receiver Non-Inverted Data Output

    3


    23


    GND

    Ground

    1

    1

    24

    CML-O

    Rx4n

    Receiver Inverted Data Output

    3


    25

    CML-O

    Rx4p

    Receiver Non-Inverted Data Output

    3


    26


    GND

    Ground

    1

    1

    27

    LVTTL-O

    ModPrsL

    Module Present

    3


    28

    LVTTL-O

    IntL

    Interrupt

    3


    29


    VccTx

    +3.3V Power Supply Transmitter

    2

    2

    30


    Vcc1

    +3.3V Power Supply

    2

    2

    31

    LVTTL-I

    LPMode

    Low Power Mode

    3


    32


    GND

    Ground

    1

    1

    33

    CML-I

    Tx3p

    Transmitter Non-Inverted Data Input

    3


    34

    CML-I

    Tx3n

    Transmitter Inverted Data Input

    3


    35


    GND

    Ground

    1

    1

    36

    CML-I

    Tx1p

    Transmitter Non-Inverted Data Input

    3


    37

    CML-I

    Tx1n

    Transmitter Inverted Data Input

    3


    38


    GND

    Ground

    1

    1

    1: GND is the symbol for   signal and supply (power) common for the module. All are common within the   module and all module voltages are referenced to this potential unless   otherwise noted. Connect these directly to the host board signal- common   ground plane.

    2: VccRx, Vcc1 and VccTx   are applied concurrently and maybe internally connected within the module in   any combination.

    Vcc contacts in SFF-8662   and SFF-8672 each have a steady state current rating of 1A.


    The host board should use a power supply filtering network equivalent to that shown in Figure 7.

    Any voltage drop across a filter network on the host is counted against the host DC set point accuracy specification. Inductors with DC resistance of less than 0.1 ohm should be used in order to maintain the required voltage at the host edge card connector. It is recommended that the 22 μF capacitors each have an equivalent series resistance of 0.22 ohm.

    The specification of the host power supply filtering network is beyond the scope of this specification, particularly because of the wide range of QSFP+ module Power Classes. Each power connection has a supply filter for reducing high frequency noise and ripple from host-to-module. During a hot-plug event, the filter network limits any voltage drop on the host supply so that neighboring modules sharing the same supply stay within their specified supply voltage limits.

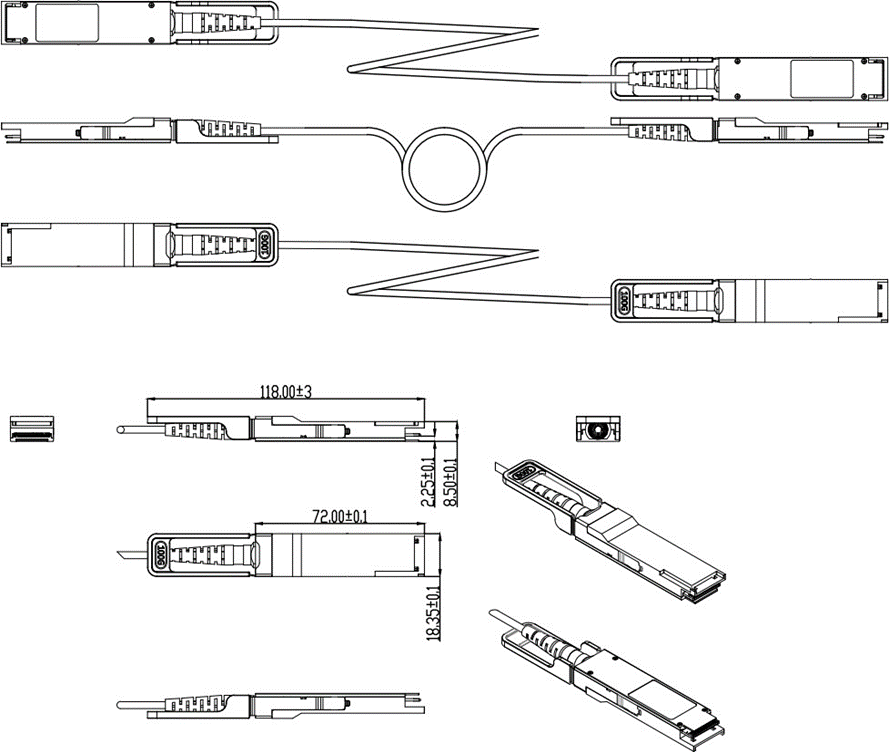

  • Mechanical Specification
