100G QSFP28 DWDM LR1

Accelight’s QSFP28 DWDM LR1 series single mode transceiver is designed for use duplex optical data communications. This module is designed for single mode fiber and operates at a nominal DWDM wavelength from 1295.56nm to 1304.58nm as specified by the CW-WDM MSA, operating at 50Gbaud data rate. The electrical interface of the module is compliant with the OIF CEI-28G- VSR and compliant with QSFP28 MSA. It is designed to deploy in the DWDM networking equipment in metropolitan access and core networks.

DOWNLOAD

Product Details

Product Features

Supports 100Gbps

Single 3.3V Power Supply

Power dissipation < 5.5W

Up to 10km over SMF with FEC

RoHS compliant

QSFP28 MSA Compliant

SFF-8636 Rev 2.10a Compliant

4x25Gbps Electrical interface

LC Duplex connector

Commercial case temperature range of 0°C to 70°C

I2C interface with integrated Digital Diagnostic Monitoring
Applications

HFC/DAA

Ethernet networks

CPRI/Wireless

Other optical links
Ordering information

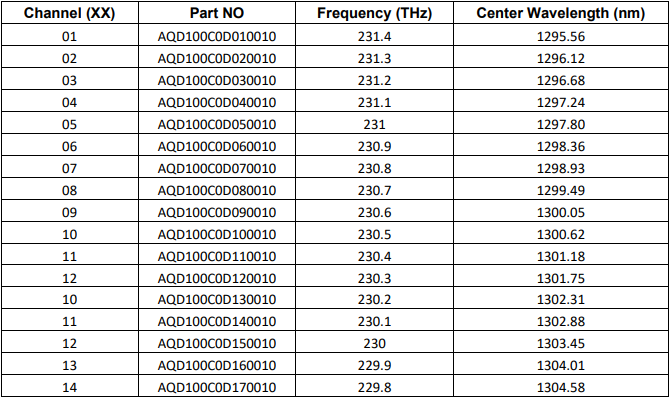

Note: Customized version. XX refers to DWDM Wavelength channel 01~16 as ITU-T specified, please refer the following table for detailed center wavelength information.
