100G QSFP28 BIDI ER Lite

Accelight’s QSFP28 BIDI transceiver module is designed for use in 100 Gigabit Ethernet links over 30km single mode fiber. The module incorporates 1 channel optical signal, operating at 100Gbps data rate. This module can convert 4 channels of 25Gbps (NRZ) electrical input data to 1 channel of 100Gbps (PAM4) optical signal, and also can convert 1 channel of 100Gbps (PAM4) optical signal to 4 channels of 25Gbps (NRZ) electrical output data. The electrical interface of the module is compliant with the OIF CEI28G-VSR and QSFP28 MSA.

DOWNLOAD

Product Details

Product Features

Supports 100Gbps

Single 3.3V Power Supply

100G Lambda MSA 100G-ER1-30 Specification Compliant

Power dissipation < 4.5W (Commercial)

Power dissipation < 5.5W (Industrial)

Up to 30km over SMF with FEC

RoHS compliant

QSFP28 MSA Compliant

SFF-8636 Rev 2.10a Compliant

4x25Gbps Electrical interface

BIDI LC receptacles

Commercial case temperature range: Commercial 0°C to 70°C / Industrial 40°C to 85°C

I2C interface with integrated Digital Diagnostic Monitoring
Applications

HFC/DAA

Ethernet networks

CPRI/Wireless

Other optical links

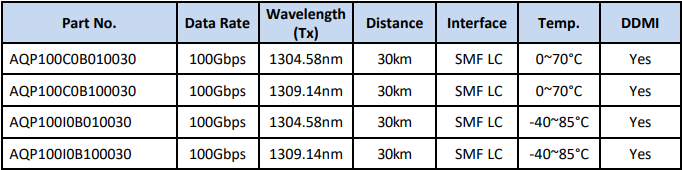

Ordering information
