XGS-PON ONU STICK

The STICK optical module can fully meet the requirements of the carrier-grade FTTB\ FTTH\ FTTO device. It can be hot-swapped into the SFP+ slot of the Layer 2 Ethernet switch. The whole machine can be used as an ONT or even an MDU, so that the whole device can be directly connected to the XGSPON optical network, the central office OLT only needs to register the XGSPON ONU STICK optical module as if it were a normal optical cat. The communication device can complete the access switch from the original P2P. It also contain a DFB laser diode is employed for upstream transmission at 9.953Gbps. The optical transmitter includes a back facet photo-detector to monitor laser power for APC control. and an APD with TIA is employed for downstream data reception at 9.953Gbps. A post amplifier is also included for CML output compatibility.

DOWNLOAD

Product Details

Product Features

Single Fiber XGS-PON Stick ONU Transceiver

1270nm burst-mode 9.953 Gb/s transmitter with DFB laser

1577nm continuous-mode 9.953Gb/s APD/TIA receiver

Digital diagnostic monitoring (DDM)with internal calibration

SFP+ package with SC/APC receptacle connector

+3.3V separated power supply

Built in PRX126 MAC

Supports the OMCI standard

Support for logical identity (LOID) authentication

Support 1PPS+ToD

Support PON link status indication

Supports the abnormal light-off function of the optical module

Compliant with ITU-T G.9807

RoHS Compliant
Applications

PON and wireless backhaul

Providing pluggable XGSPON ONU interface for Ethernet switches, routers, DSLAMs, home gateway and other customer premises equipment

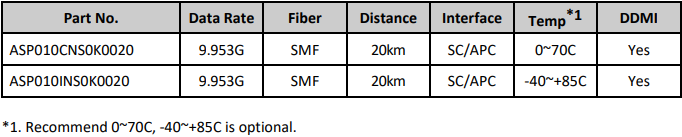

Ordering information
