MDC patchcord

DOWNLOAD

Product Details
  • Product Features
    High density with up to 6 connections in one SC-shaped adapter
    Push-pull mechanism for best handling and high packing density
    Push-pull mechanism without need for additional tools
    Easy to clean, not sensitive to dirt
    Proven 1.25 mm Ferrule technology
    Allow direct access to each individual channel
    Polarity flipping without tool
  • Applications
    Test & Measurements
    Broadband Access Networks
    Data Center Interconnect
  • Standards
    GR-326
  • Performance Specifications

    Fiber Type

    Single Mode

    Connector Type

    PC

    APC

    Insertion Loss (dB)

    ≤0.3

    Return Loss (dB)

    ≥50

    ≥60

    Operating Temperature (℃)

    -40 ~ +85

    Test Wavelength (nm)

    1310&1550

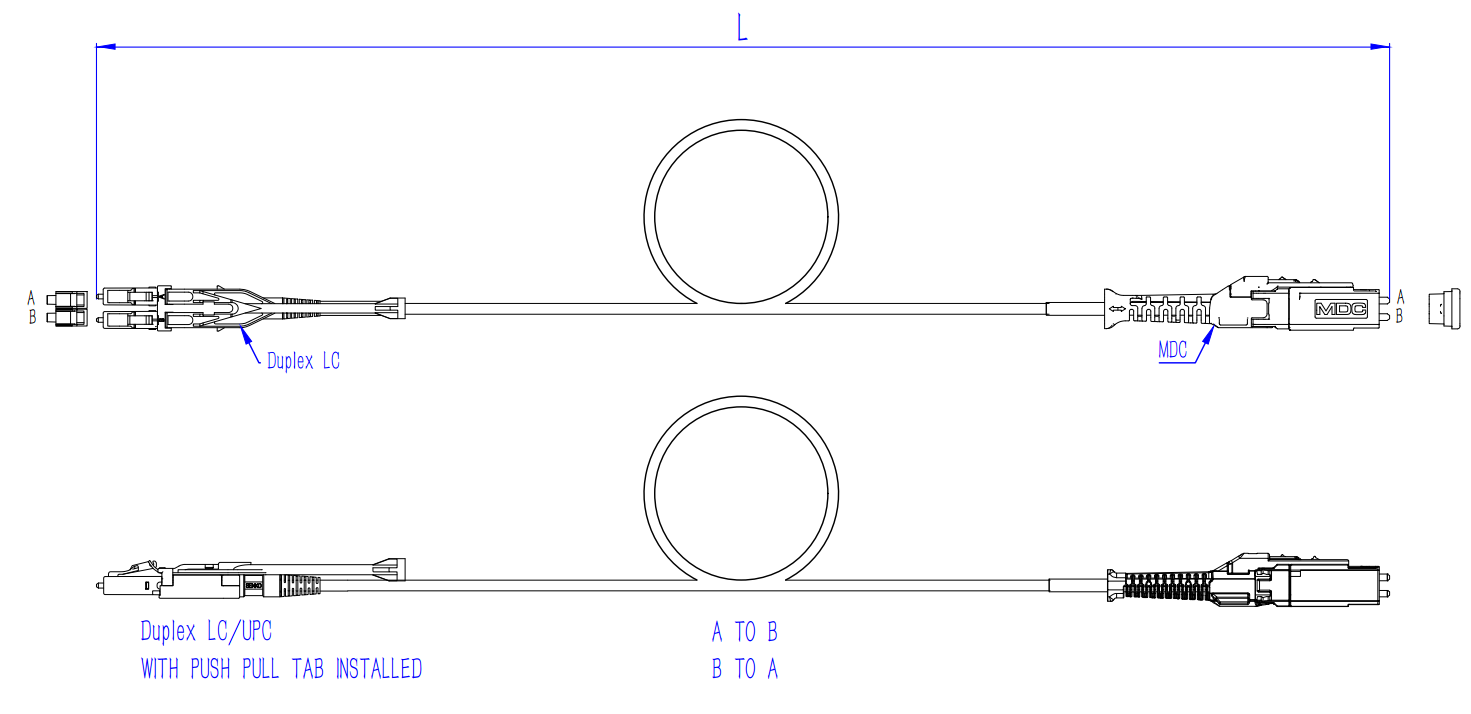

  • Mechanical Dimensions


  • Ordering Information

    A

    BB

    C

    DD

    E

    FF

    GG

    HH

    Mode Type

    End1 connector

    Ferrule 1 Type

    End2 connector

    Ferrule 2 Type

    Fiber/Cable Diameter

    Fiber Type

    Fiber/Cable Length

    S:SM

    SR:MDC Sr

    U:UPC

    LC:LC

    U:UPC

    25: 250µm

    GD: G652D

    05: 0.5M


    JR:MDC Jr

    A:APC

    SC:SC

    A:APC

    09: 900µm

    A1: G657A1

    10: 1M




    SR:MDC Sr


    12: 1.2mm

    A2: G657A2

    15: 1.5M




    JR:MDC Jr


    16: 1.6mm


    20: 2M








    30: 3M











Related Products
2RU-Chassis
MPO Trunk Cable, Fanout patchcord
24f-288f bundle
