Connector Type

PC

APC

PC

Insertion   Loss (dB)

≤0.3

Return Loss (dB)

≥50

≥60

≥25

Durability (dB)

≤0.2 1000 Secondary docking

Operating Temperature (℃)

-40 ~ +85

Test Wavelength (nm)

1310&1550

850&1300

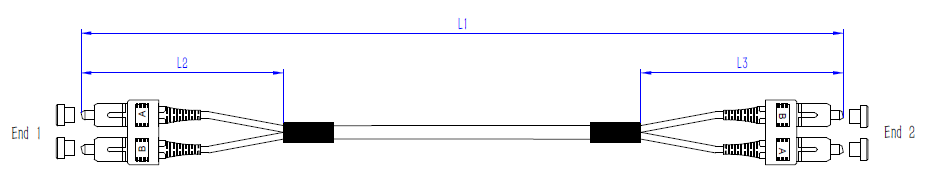

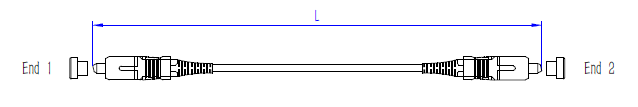

Length Tolerance

L ≤ 1m

± 50

mm

1m< L ≤ 3m

± 100

mm

3m< L ≤ 10m

± 200

mm

L > 10m

± 2

%

G652D,G657A1,G657A2

OM1, OM2, OM3, OM4

Main Cable Jacket Color

Yellow

SMF G652D, G657A1, G657A2 fiber

Orange/Aqua

MMF 50/125µm, 62.5/125µm

Aqua

OM3 50/125µm; OM4 50/125µm

Mode Type

Configuration

End1 connector

End2 connector

Fiber/Cable Core

Fiber/Cable Diameter

Fiber Type

Fiber/Cable Length

S:SM

S:Simplex

LU:LC/UPC

LU:LC/UPC

01: Single fiber

25: 250µm

GD: G652D

05: 0.5M

M:MM

D: Duplex

LA:LC/APC

LA:LC/APC

02: Duplex fiber

09: 900µm

A1: G657A1

10: 1M

SU:SC/UPC

SU:SC/UPC

04: 4 Core

12: 1.2mm

A2: G657A2

15: 1.5M

SA:SC/APC

SA:SC/APC

08: 8 Core

16: 1.6mm

O1: OM1

20: 2M

FU:FC/UPC

FU:FC/UPC

12: 12 Core

20: 2mm

O2: OM2

30: 3M

FA:FC/APC

FA:FC/APC

30: 3mm

O3: OM3

1M: 10M

O4: OM4
