OTDR Wavelength

nm

1640-1660

GPON Wavelength

nm

1290-1330 &1480-1500

XGS-PON Wavelength

nm

1260-1280 &1575-1581

NG-PON2 Wavelength

nm

1524-1544 &1596-1603

10G EPON Wavelength

nm

1260-1280 &1575-1581

RFoG Wavelength

nm

1550-1560

COM to OTDR Insertion Loss

dB

≤1.0

COM to GPON Insertion Loss

dB

≤1.2

For

OG or OX or ON or OE

COM to XGS-PON Insertion Loss

dB

COM to NG-PON2 Insertion Loss

dB

COM to 10G EPON Insertion Loss

dB

COM to RFoG Insertion Loss

dB

COM to GPON Insertion Loss

dB

≤1.2

For

OGX or OGN

COM to XGS-PON Insertion Loss

dB

≤1.4

COM to NG-PON2 Insertion Loss

dB

OTDR Isolation

dB

≥15

GPON Isolation

dB

≥30

XGS-PON Isolation

dB

≥30

NG-PON2 Isolation

dB

≥30

10G EPON Isolation

dB

≥30

RFoG Isolation

dB

≥30

Return Loss

dB

≥45

PDL

dB

≤0.3

Directivity

dB

≥45

Power Handling

mW

≤300

Module Type

Channel

Packing Type

Connector Type

Configuration

WDM

OG: OTDR&GPON

1L: 1U LGX

LU:LC/UPC

1:Single

OX: OTDR & XGS-PON

2L: 2U LGX

LA:LC/APC

2:Dual

ON: OTDR &  NG-PON2

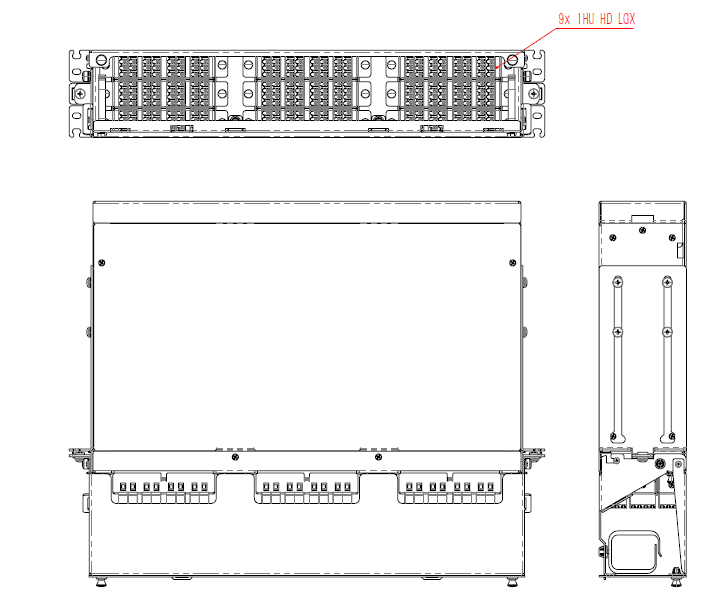

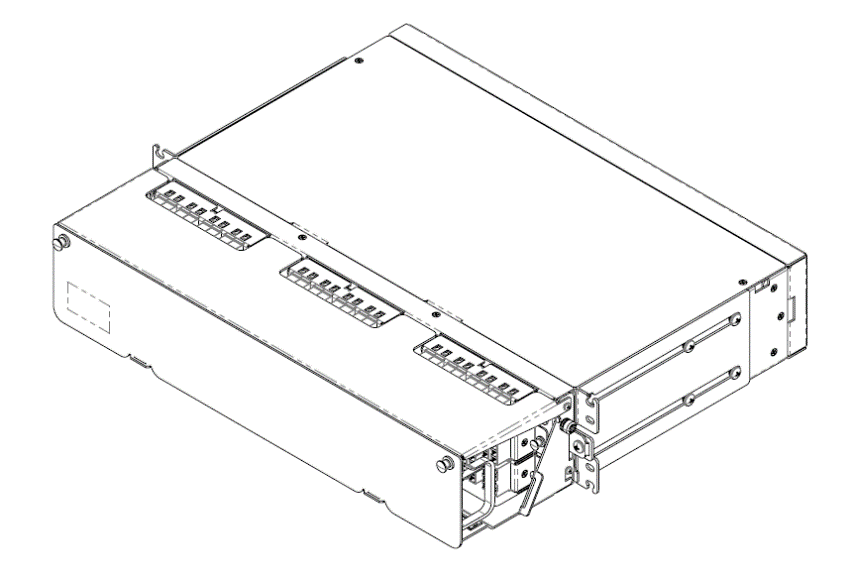

2RU: 2RU-Chassis

SU:SC/UPC

3:Triple

OE: OTDR & 10G EPON

SA:SC/APC

    ……

OR: OTDR & RFoG

FU:FC/UPC

　……

OGX: OTDR & GPON &   XGS-PON

FA:FC/APC

OGN: OTDR & GPON &  NG-PON2

00 :No Connector
