40G QSFP+ 4x10G SFP+ AOC

Product Features

Supports 40G to 10G Ethernet interoperability

Aggregate 4 discrete SFP+ 10G channels into

single parallel QSFP+ 40G interface

Maximum link length of 100m links on OM3 multimode fiber Or 150m links on OM4 multimode fiber

Electrically hot-pluggable

Electrical interface compliant to QSFP+ connector

(SFF-8436) and SFP+ connectors (SFF-8431)

Case operating temperature range:0°C to 70°C

Applications

Network Switch Manufacturers supporting 40/10 G

Server Manufacturers supporting 40/10 G

Data Centers with 10G requirements with Aggregation Architectures

Standards

QSFP+ module compliant to SFF 8436 MSA

SFP+ module compliant to SFF8431 MSA

RoHS Compliant.

Ordering information

Part number	Description
AAQSSP040Cxxx	XXX=different cable lengths on OM3 Multimode Fiber (MMF)-Note
Xxx	cable lengths on OM3 Multimode Fiber (MMF)
003	3m
005	5m
007	7m
010	10m
050	50m
100	100m

Note:

1. Cable length’s range of SFP+ end to 1- 4 point must be 0.5 to 3 m.

2. More detail product selection and cable lengths，please contact sales

Performance Specifications

Absolute Maximum Ratings

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Storage Temperature	Ts	-40	-	85	ºC
Relative Humidity	RH	5	-	95	%
Power Supply Voltage	VCC	-0.3	-	4	V
Signal Input Voltage		Vcc-0.3	-	Vcc+0.3	V

Recommended Operating Conditions

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Case Operating Temperature	Tcase	0	-	70	ºC	Without air flow
Power Supply Voltage	VCC	3.14	3.3	3.46	V
Power Supply Current	ICC			300	mA	Per cable end- SFP+
Power Supply Current	ICC	-		450	mA	Per cable end- QSFP+
Data Rate	BR		10.3125		Gbps	SFP+ Bit rate
Data Rate	BR		41.25		Gbps	QSFP+ Bit rate

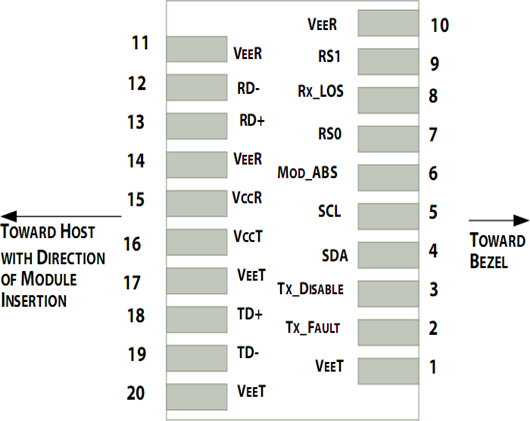

Pin Assignment

Pin	Symbol	Name/Description	NOTE
1	VEET	Transmitter Ground (Common with Receiver Ground)	1
2	TFAULT	Transmitter Fault.	2
3	TDIS	Transmitter Disable. Laser output disabled on high or open.	3
4	SDA	2-wire Serial Interface Data Line	4
5	SCL	2-wire Serial Interface Clock Line	4
6	MOD_ABS	Module Absent. Grounded within the module	4
7	RS0	Rate Select 0	5
8	LOS	Loss of Signal indication. Logic 0 indicates normal operation.	6
9	RS1	No connection required	1
10	VEER	Receiver Ground (Common with Transmitter Ground)	1
11	VEER	Receiver Ground (Common with Transmitter Ground)	1
12	RD-	Receiver Inverted DATA out. AC Coupled
13	RD+	Receiver Non-inverted DATA out. AC Coupled
14	VEER	Receiver Ground (Common with Transmitter Ground)	1
15	VCCR	Receiver Power Supply
16	VCCT	Transmitter Power Supply
17	VEET	Transmitter Ground (Common with Receiver Ground)	1
18	TD+	Transmitter Non-Inverted DATA in. AC Coupled.
19	TD-	Transmitter Inverted DATA in. AC Coupled.
20	VEET	Transmitter Ground (Common with Receiver Ground)	1

Notes:

Circuit ground is internally isolated from chassis ground.
TFAULT is an open collector/drain output, which should be pulled up with a 4.7k – 10k Ohms resistor on the host board if intended for use. Pull up voltage should be between 2.0V to Vcc + 0.3V.A high output indicates a transmitter fault caused by either the TX bias current or the TX output power exceeding the preset alarm thresholds. A low output indicates normal operation. In the low state, the output is pulled to <0.8V.

3. Laser output disabled on TDIS >2.0V or open, enabled on TDIS <0.8V.

4. Should be pulled up with 4.7kΩ- 10kΩ host board to a voltage between 2.0V and 3.6V. MOD_ABS pulls line low to indicate module is plugged in.

5. Internally pulled down per SFF-8431 Rev 4.1.

6.LOS is open collector output. It should be pulled up with 4.7kΩ – 10kΩ on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.

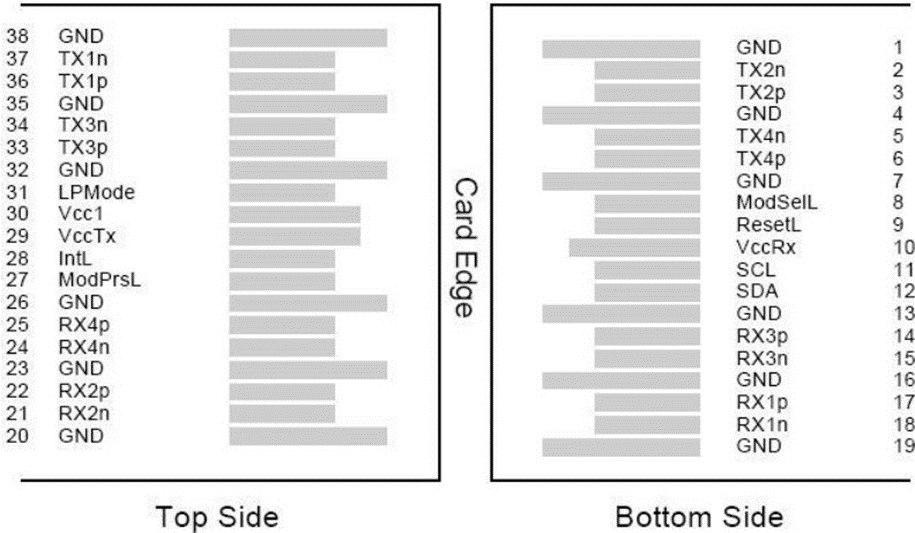

Pin	Symbol	Name/Description	NOTE
1	GND	Transmitter Ground (Common with Receiver Ground)	1
2	Tx2n	Transmitter Inverted Data Input
3	Tx2p	Transmitter Non-Inverted Data output
4	GND	Transmitter Ground (Common with Receiver Ground)	1
5	Tx4n	Transmitter Inverted Data Input
6	Tx4p	Transmitter Non-Inverted Data output
7	GND	Transmitter Ground (Common with Receiver Ground)	1
8	ModSelL	Module Select
9	ResetL	Module Reset
10	VccRx	3.3V Power Supply Receiver	2
11	SCL	2-Wire serial Interface Clock
12	SDA	2-Wire serial Interface Data
13	GND	Transmitter Ground (Common with Receiver Ground)
14	Rx3p	Receiver Non-Inverted Data Output
15	Rx3n	Receiver Inverted Data Output
16	GND	Transmitter Ground (Common with Receiver Ground)	1
17	Rx1p	Receiver Non-Inverted Data Output
18	Rx1n	Receiver Inverted Data Output
19	GND	Transmitter Ground (Common with Receiver Ground)	1
20	GND	Transmitter Ground (Common with Receiver Ground)	1
21	Rx2n	Receiver Inverted Data Output
22	Rx2p	Receiver Non-Inverted Data Output
23	GND	Transmitter Ground (Common with Receiver Ground)	1
24	Rx4n	Receiver Inverted Data Output	1
25	Rx4p	Receiver Non-Inverted Data Output
26	GND	Transmitter Ground (Common with Receiver Ground)	1
27	ModPrsl	Module Present
28	IntL	Interrupt
29	VccTx	3.3V power supply transmitter	2
30	Vcc1	3.3V power supply	2
31	LPMode	Low Power Mode，not connect
32	GND	Transmitter Ground (Common with Receiver Ground)	1
33	Tx3p	Transmitter Non-Inverted Data Input
34	Tx3n	Transmitter Inverted Data Output
35	GND	Transmitter Ground (Common with Receiver Ground)	1
36	Tx1p	Transmitter Non-Inverted Data Input
37	Tx1n	Transmitter Inverted Data Output
38	GND	Transmitter Ground (Common with Receiver Ground)	1

Notes:

1. GND is the symbol for signal and supply (power) common for QSFP+ modules. All are common within the QSFP+ module and all module voltages are referenced to this potential unless otherwise noted. Connect these directly to the host board signal common ground plane.

2. VccRx, Vcc1 and VccTx are the receiving and transmission power suppliers and shall be applied concurrently. Recommended host board power supply filtering is shown below. Vcc Rx, Vcc1 and Vcc Tx may be internally connected within the QSFP+ transceiver module in any combination. The connector pins are each rated for a maximum current of 500mA.

Host - Transceiver Interface Block Diagram

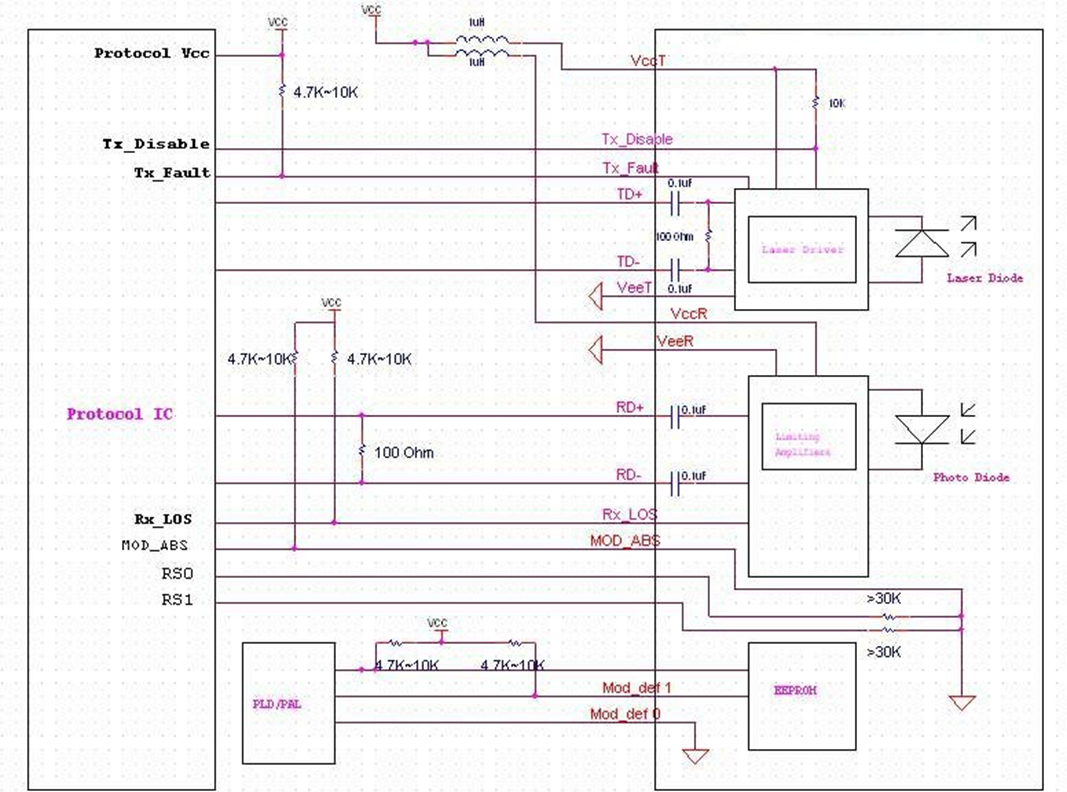

Cable END—SFP+

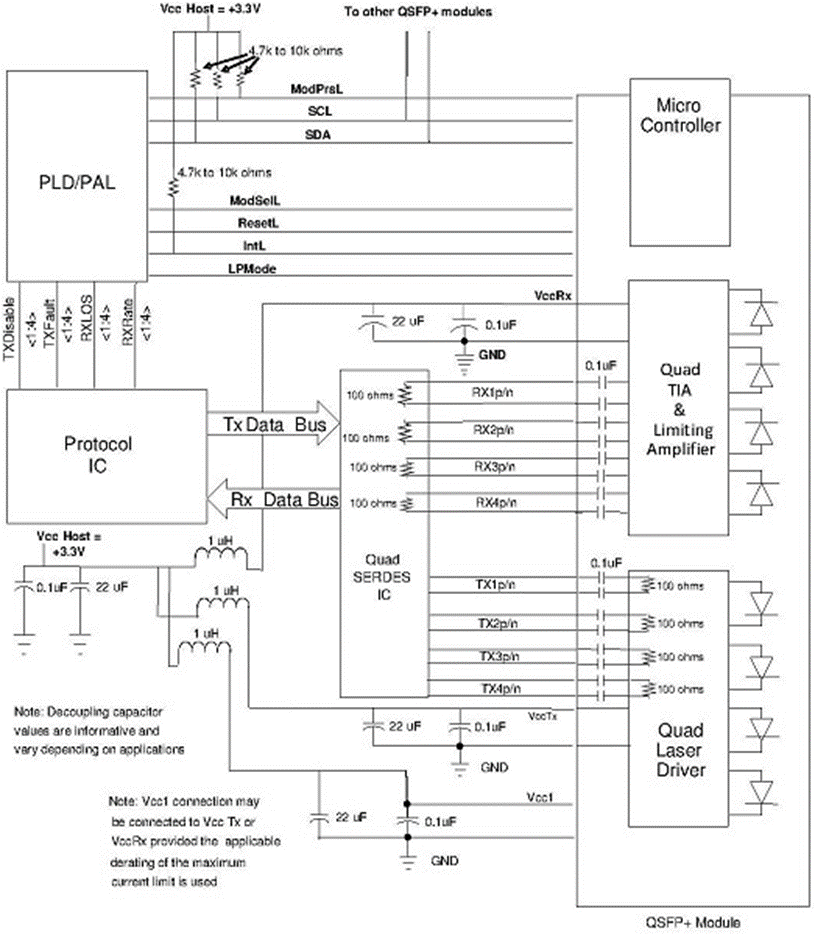

Cable END—QSFP+
