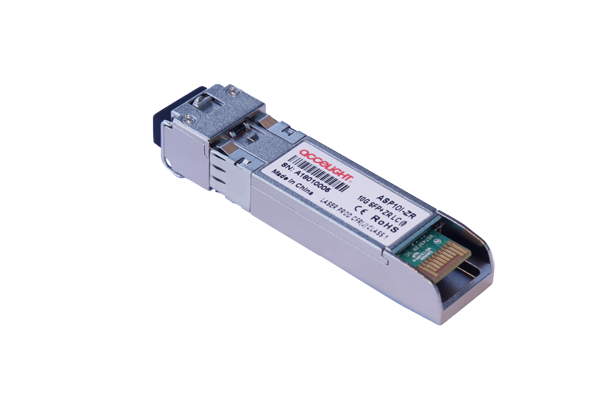

10G SFP+ ER ZR

Accelight’s 10G SFP+ ER 40km series single mode transceiver is small form factor pluggable module for duplex optical data communications up to 10G. It is with the SFP+ 20-pin connector to allow hot plug capability This module is designed for single mode fiber and operates at a nominal wavelength of 1550 nm. The transmitter section uses a 1550nm EML, which is class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

DOWNLOAD

Product Details

Product Features

Operating Data Rate up to 11.3Gbps

1550nm EML Transmitter

Distance up to 40km/80km

Single 3.3V Power Supply and TTL Logic Interface

Duplex LC Connector Interface

Hot Pluggable

Power Dissipation < 1.5W (Typical < 1W)

Dispersion Tolerance 800ps/nm(40km) / 1600ps/nm(80km)

Compliant with MSA SFP+ Specification SFF-8431/8432/8472

RoHS Compliant

Operating temperature range (Case Temperature): Commercial Level ：0◦C to 70◦C / Industrial Level: -40◦C to 85◦C
Applications

HFC /DAA

CPRI/Wireless

Ethernet networks

Other optical links

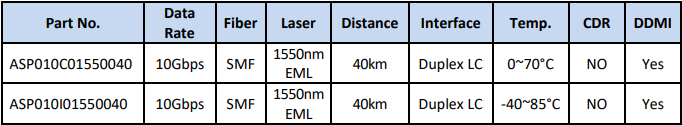

Ordering information
