QSFP56-DD to 400G QSFP112 AOC
Accelight’s QSFP56-DD to QSFP112 AOC is designed for use in 400 Gigabit Ethernet over 1~30m MMF. QSFP56-DD end of the AOC module has 8 independent electrical input/output channels operating at 53.125Gbps per channel. QSFP112 end of the AOC module has 4 independent electrical input/output channels operating at 106.25Gbps per channel. It consists of a transmitter/receiver unit operating on 850nm wavelength. The electrical interface of the module is compliant with the 400GAUI-8/400GAUI-4 interface as defined by IEEE 802.3bs/IEEE 802.3ck, and compliant with QSFP56-DD/QSFP112 MSA.
Product Details
  • Product Features
    Supports 425Gbps
    Single 3.3V Power Supply
    QSFP56-DD End Power Dissipation < 8W
    QSFP112 End Power Dissipation < 8W
    Up to 30m over MMF
    RoHS compliant
    QSFP56-DD/QSFP112 MSA Compliant
    QSFP56-DD: 8x26.5625GBd (PAM4) Electrical Interface
    QSFP112: 4x53.125GBd (PAM4) Electrical Interface
    VCSEL Transmitters
    PIN and TIA array on the receiver side
    I2C interface with integrated Digital Diagnostic Monitoring
    Commercial case temperature range of 0°C to 70°
  • Applications
    Data Center
    Ethernet

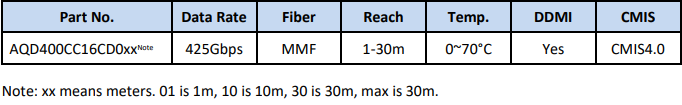

  • Ordering information
