QSFP56-DD 400G to 2x200G breakout AOC
Accelight's QSFP56-DD to 2xQSFP56 AOC is designed for use in 400 Gigabit Ethernet links over 30m MMF. QSFP56-DD end of the AOC module has 8 independent electrical input/output channels operating at 53.125Gbps per channel. Each QSFP56 end of the AOC module has 4 independent electrical input/output channels operating at 53.125Gbps per channel. It consists of two transmitter/receiver units, with each operating on 850nm wavelength. The electrical interface of the module is compliant with the 400GAUI-8/200GAUI-4 interface as defined by IEEE 802.3bs, and compliant with QSFP56- DD/QSFP56 MSA.
Product Details
  • Product Features
    Supports 425Gbps
    Single 3.3V Power Supply
    QSFP56-DD End Power dissipation < 10W Each QSFP56 End Power Dissipation <5W
    Up to 30m over MMF
    RoHS compliant
    QSFP56-DD/QSFP56 MSA Compliant
    QSFP56-DD:8x26.5625GBd(PAM4) Electrical interface QSFP56: 4x26.5625GBd(PAM4) Electrical interface
    VCSEL Transmitter
    PIN and TIA array on the receiver side
    I2C interface with integrated Digital Diagnostic Monitoring
    Commercial case temperature range of 0°C to 70°
  • Applications
    400G QSFP56-DD to 2x QSFP56 AOC
  • Ordering information

    Part No.

    Data Rate

    Fiber

    Distance

    Temp.

    DDMI

    CMIS

    AAQD2QP2400Cxxx

    425Gbps

    MMF

    1-30m

    0~+70

    Yes

    CMIS4.0

    Note: xxx means meters.eg. 001 is 1m, max is 30m.s



  • Performance Specification

    Absolute Maximum Ratings

    Parameter

    Symbol

    Min.

    Max.

    Unit

    Storage   Temperature

    Ts

    -40

    85

    °C

    Supply Voltage

    Vcc

    -0.5

    3.6

    V

    Operating   Relative Humidity

    RH

    5

    85

    %

    Recommended Operating Conditions

    Parameter

    Symbol

    Min.

    Typical

    Max.

    Unit

    Operating Case   Temperature

    Tc

    0


    70

    °C

    Power   Supply Voltage

    Vcc

    3.135

    3.3

    3.465

    V

    Power Supply Noise




    25

    mVpp

    Receiver   Differential Data Output Load



    100


    Ohm

    Fiber Length (MMF)




    30

    m

    Bit Error Rate   (26.5625GBd PAM4)

    BER



    2.4E-

    4



    Figure 1: AOC Block Diagram


    Figure 2: Application Reference Diagram

    Transmitter

    As shown in Figure 1, the transmitter path of the AOC (QSFP56-DD end) contains an 8x53.125Gbps 400GAUI-8 electrical input with Equalization (EQ) block, two 4-channel laser drivers and multi-mode laser source. And the transmitter path of the AOC (QSFP56 end) contains an 4x53.125Gbps 200GAUI-4 electrical input with Equalization (EQ) block, one 4-channel laser driver and multi-mode laser source.

    Receiver

    As shown in Figure 1, the receiver path of the AOC (QSFP56-DD end) contains eight PIN photodiodes, two 4- channel trans-impedance amplifiers (TIA) and integrated 400GAUI-8 compliant electrical output blocks. And the receiver path of the AOC (QSFP56 end) contains four PIN photodiodes, one 4-channel trans-impedance amplifier (TIA) and integrated 200GAUI-4 compliant electrical output block.

    High Speed Electrical Signal Interface

    The interface between QSFP56-DD/QSFP56 module and ASIC/SerDes is shown in Figure 2. The high speed signal lines are internally AC-coupled and the electrical inputs are internally terminated to 100 ohms’ differential. All transmitter and receiver electrical channels are compliant to module 400GAUI-8 and 200GAUI-4 specifications per IEEE 802.3bs.



    Control Signal Interface

    The control signal interface is compliant with QSFP56-DD and QSFP56 MSA. The following pin is provided to control module or display the module status: ModSelL, ResetL, LPMode, ModPrsL and IntL. In addition, there is an industry standard two wire serial interface scaled for 3.3V LVTTL. The definition of control signal interface and the registers of the serial interface memory are defined in the Control Interface & Memory Map section.

    Handling and Cleaning

    The AOC module may be damaged immediately by exposure to current surges and over voltage events. Care should be taken to restrict exposure to the conditions defined in the Absolute Maximum Ratings. Wave soldering, reflow soldering and/or aqueous wash process with the modules on board are not recommended. Normal handling precautions for electrostatic discharge sensitive devices should be observed.

    General Electrical Characteristics

    Parameter

    Symbol

    Min.

    Typical

    Max.

    Unit

    AOC Power   Consumption (QSFP56-DD End)




    10

    W

    AOC Power   Consumption (QSFP56 End)




    5

    W

    AOC Power   Supply Total Current

    (QSFP56-DD End)




    2886

    mA

    AOC Power   Supply Total Current

    (QSFP56 End)




    1515

    mA

    AC Coupling   Internal Capacitor



    0.1


    μF

    Reference Points

    Test Point

    Description



    TP0   to TP5

    This channel includes   transmitter and receiver differential control impedance printed

    circuit board   insertion loss and cable assembly insertion loss.



    TP1   to TP4

    All cable   assembly measurements are made between TP1 and TP4 as illustrated in

    Figure 3.



    TP0 to TP2   TP3 to TP5

    A mated connector pair has been included in both the transmitter and receiver specifications defined in 802.3cd 136.9.3 and 136.9.4. The recommended maximum insertion loss from TP0 to TP2 or from TP3 to TP5 including the test fixture is provided in

    802.3cd 136.9.3.2



    TP2

    Unless specified   otherwise, all transmitter measurements defined in 802.3cd 136.9.3 are

    made at TP2 utilizing the test fixture specified   in Annex 136B.



    TP3

    Unless   specified otherwise, all receiver measurements and tests defined in 802.3cd

    136.9.4 are made   at TP3 utilizing the test fixture specified in Annex 136B.


    Figure 3: IEEE 802.3cm Block Diagram for 400GBASE-SR8 Transmit/Receive Paths


    Figure 4: IEEE 802.3cd Block Diagram for 200GBASE-SR4 Transmit/ReceivePaths


    Figure 5: IEEE 802.3bs 400GAUI-8/200GAUI-4 C2M Compliance Points TP1a, TP4a


    Figure 6: IEEE 802.3bs 400GAUI-8/200GAUI-4 C2M Compliance Points TP1, TP4

    High Speed Electrical Input Characteristics

    Parameter

    Test

    Point

    Min.

    Typical

    Max.

    Unit

    Signaling Rate per Lane

    TP1


    26.5625±

    100ppm


    GBd

    Differential   peak-peak Input Voltage

    Tolerance

    TP1a

    900



    mV

    Differential   Input Return Loss

    TP1

    Equation (83E-5)



    dB

    Common To Differential Mode Conversion Return Loss

    TP1

    Equation (83E-6)



    dB

    Differential   Termination Mismatch

    TP1



    10

    %

    Single-Ended   Voltage Tolerance Range

    TP1a

    -0.4


    3.3

    V

    DC Common-Mode Output   Voltage

    TP1

    -350


    2850

    mV

    Module Stressed Input Test

    TP1a





    Eye   Width



    0.22


    UI

    Applied peak-peak   Sinusoidal Jitter



    Table   120E-

    6





    Eye Height



    32


    mV

    High Speed Electrical Output Characteristics

    ParamPareter

    Test

    Point

    Min.

    Typical

    Max.

    Unit

    Signaling Rate per Lane

    TP4


    26.5625±

    100ppm


    GBd

    AC Common-Mode   Output Voltage (RMS)

    TP4



    17.5

    mV

    Differential Peak-to-Peak   Output

    Voltage

    TP4



    900

    mV



    Near-end ESMW (Eye Symmetry Mask Width)



    TP4



    0.265





    UI

    Near-end Eye Height,   Differential



    TP4



    70





    mV

    Differential   Output Return Loss

    TP4

    Equation (83E-2)




    Common to Differential   Mode

    Conversion Return Loss

    TP4

    Equation (83E-3)




    sDifferential Termination   Mismatch

    TP4



    10

    %

    Transition Time (20% ~80%)

    TP4

    9.5



    ps

    DC Common Mode Voltage

    TP4

    -350


    2850

    mV

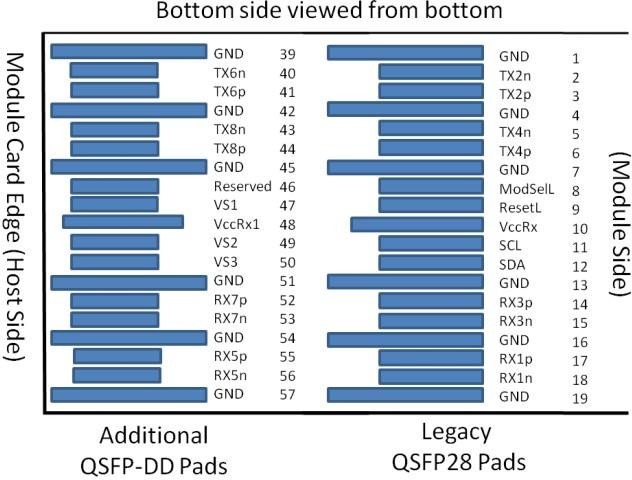

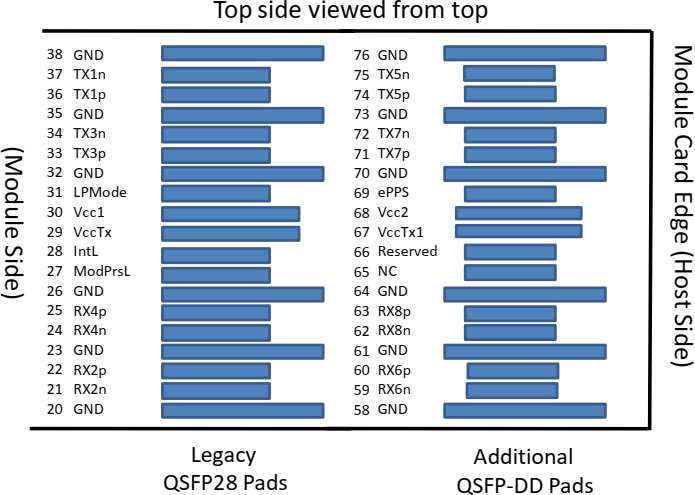

    QSFP56-DD End Electrical Pad Layout

    Pin Descriptions


    Pin

    Logic

    Symbol

    Description

    Plug Sequence4

    Notes



    1


    GND

    Ground

    1B

    1



    2

    CML-I

    Tx2n

    Transmitter Inverted Data Input

    3B




    3

    CML-I

    Tx2p

    Transmitter Non- Inverted Data Input

    3B




    4


    GND

    Ground

    1B

    1



    5

    CML-I

    Tx4n

    Transmitter Inverted Data Input

    3B




    6

    CML-I

    Tx4p

    Transmitter Non- Inverted Data Input

    3B




    7


    GND

    Ground

    1B

    1



    8

    LVTTL-I

    ModSelL

    Module Select

    3B




    9

    LVTTL-I

    ResetL

    Module Reset

    3B




    10


    VccRx

    +3.3V Power Supply Receiver

    2B

    2



    11

    LVCMOS- I/O

    SCL

    2-wire serial interface clock

    3B




    12

    LVCMOS- I/O

    SDA

    2-wire serial interface data

    3B




    13


    GND

    Ground

    1B

    1



    14

    CML-O

    Rx3p

    Receiver Non-

    3B




    Inverted Data

    Output



    15

    CML-O

    Rx3n

    Receiver Inverted Data Output

    3B




    16


    GND

    Ground

    1B

    1



    17

    CML-O

    Rx1p

    Receiver Non-

    3B




    18

    CML-O

    Rx1n

    Receiver   Inverted

    3B






    Data Output




    19


    GND

    Ground

    1B

    1


    20


    GND

    Ground

    1B

    1


    21

    CML-O

    Rx2n

    Receiver   Inverted

    3B






    Data Output




    22

    CML-O

    Rx2p

    Receiver Non-

    3B






    Inverted   Data

    Output




    23


    GND

    Ground

    1B

    1


    24

    CML-O

    Rx4n

    Receiver   Inverted Data Output

    3B



    25

    CML-O

    Rx4p

    Receiver Non-   Inverted Data

    3B






    Output




    26


    GND

    Ground

    1B

    1


    27

    LVTTL-O

    ModPrsL

    Module Present

    3B



    28

    LVTTL-O

    IntL

    Interrupt

    3B



    29


    VccTx

    +3.3V   Power supply

    2B

    2





    transmitter




    30


    Vcc1

    +3.3V Power supply

    2B

    2


    31

    LVTTL-I

    PLMode

    Low Power Mode

    3B



    32


    GND

    Ground

    1B

    1


    33

    CML-I

    Tx3p

    Transmitter   Non-

    3B






    Inverted   Data Input




    34

    CML-I

    Tx3n

    Transmitter

    3B






    Inverted   Data Input




    35


    GND

    Ground

    1B

    1


    36

    CML-I

    Tx1p

    Transmitter   Non-

    3B






    Inverted   Data Input




    37

    CML-I

    Tx1n

    Transmitter

    3B






    Inverted   Data Input




    38


    GND

    Ground

    1B

    1


    39


    GND

    Ground

    1A

    1


    40

    CML-I

    Tx6n

    Transmitter

    3A






    Inverted   Data Input




    41

    CML-I

    Tx6p

    Transmitter   Non-

    3A






    Inverted   Data Input




    42


    GND

    Ground

    1A

    1


    43

    CML-I

    Tx8n

    Transmitter

    3A






    Inverted Data Input




    44

    CML-I

    Tx8p

    Transmitter Non- Inverted Data Input

    3A



    45


    GND

    Ground

    1A

    1


    46


    Reserved

    For future use

    3A

    3


    47


    VS1

    Module Vendor   Specific 1

    3A

    3

    48


    VccRx1

    3.3V Power Supply

    2A

    2


    49


    VS2

    Module Vendor

    3A

    3





    Specific   2




    50


    VS3

    Module   Vendor

    3A

    3





    Specific   3




    51


    GND

    Ground

    1A

    1


    52

    CML-O

    Rx7p

    Receiver Non-

    3A






    Inverted   Data

    Output




    53

    CML-O

    Rx7n

    Receiver   Inverted Data Output

    3A



    54


    GND

    Ground

    1A

    1


    55

    CML-O

    Rx5p

    Receiver Non-

    3A






    Inverted   Data







    Output




    56

    CML-O

    Rx5n

    Receiver   Inverted

    3A






    Data   Output




    57


    GND

    Ground

    1A

    1


    58


    GND

    Ground

    1A

    1


    59

    CML-O

    Rx6n

    Receiver   Inverted

    3A






    Data   Output




    60

    CML-O

    Rx6p

    Receiver Non-

    3A






    Inverted   Data







    Output




    61


    GND

    Ground

    1A

    1


    62

    CML-O

    Rx8n

    Receiver   Inverted Data Output

    3A



    63

    CML-O

    Rx8p

    Receiver Non-   Inverted Data

    3A






    Output




    64


    GND

    Ground

    1A

    1


    65


    NC

    No Connect

    3A

    3


    66


    Reserved

    For future use

    3A

    3


    67


    VccTx1

    3.3V Power Supply

    2A

    2


    68


    Vcc2

    3.3V Power Supply

    2A

    2


    69


    Reserved

    For Future Use

    3A

    3


    70


    GND

    Ground

    1A

    1


    71

    CML-I

    Tx7p

    Transmitter   Non-

    3A






    Inverted   Data Input




    72

    CML-I

    Tx7n

    Transmitter   Inverted Data Input

    3A



    73


    GND

    Ground

    1A

    1


    74

    CML-I

    Tx5p

    Transmitter Non- Inverted Data Input

    3A



    75

    CML-I

    Tx5n

    Transmitter Inverted Data Input

    3A



    76


    GND

    Ground

    1A

    1


    1: QSFP-DD uses   common ground (GND) for all signals and supply (power). All are common within   the QSFP -DD module and all module voltages are referenced to this potential unless otherwise noted. Connect these directly to the host board

    signal-common ground   plane.


    2: VccRx, VccRx1, Vcc1, Vcc2, VccTx and VccTx1 shall   be applied concurrently. VccRx, VccRx1, Vcc1, Vcc2, VccTx and VccTx1 may be   internally connected within the module in any combination. The connector Vcc   pins are each rated for a

    maximum current of 1000   mA.


    3: All Vendor Specific, Reserved and No Connect pins   may be terminated with 50 ohms to ground on the host. Pad 65 (No Connect)   shall be left unconnected within the module. Vendor specific and Reserved   pads shall have an impedance to

    GND that is greater than   10 k Ohms and less than 100 pF.


    4: Plug Sequence specifies the mating sequence of the host connector   and module. The sequence is 1A, 2A, 3A, 1B, 2B, 3B. Contact sequence A will   make, then break contact with additional QSFP-DD pads. Sequence 1A, 1B will   then occur simultaneously, followed by 2A, 2B, followed by 3A, 3B.



    QSFP56 End Electrical Pad Layout


    Pin Descriptions

    Pin

    Logic

    Symbol

    Description

    Plug Sequence

    Notes

    1


    GND

    Ground

    1

    1

    2

    CML-I

    Tx2n

    Transmitter Inverted Data   Input

    3




    3



    CML-I



    Tx2p

    Transmitter Non-Inverted   Data

    Input



    3


    4


    GND

    Ground

    1

    1

    5

    CML-I

    Tx4n

    Transmitter Inverted Data   Input

    3




    6



    CML-I



    Tx4p

    Transmitter Non-Inverted   Data

    Input



    3


    7


    GND

    Ground

    1

    1

    8

    LVTTL-I

    ModSelL

    Module Select

    3


    9

    LVTTL-I

    ResetL

    Module Reset

    3


    10


    VccRx

    +3.3V Power Supply Receiver

    2

    2



    11

    LVCMOS

    - I/O



    SCL



    2-wire serial interface   clock



    3




    12

    LVCMOS

    - I/O



    SDA



    2-wire serial interface   data



    3


    13


    GND

    Ground

    1

    1



    14



    CML-O



    Rx3p

    Receiver Non-Inverted Data

    Output



    3


    15

    CML-O

    Rx3n

    Receiver Inverted Data Output

    3


    16


    GND

    Ground

    1

    1



    17



    CML-O



    Rx1p

    Receiver Non-Inverted Data

    Output



    3


    18

    CML-O

    Rx1n

    Receiver   Inverted Data Output

    3


    19


    GND

    Ground

    1

    1

    20


    GND

    Ground

    1

    1

    21

    CML-O

    Rx2n

    Receiver   Inverted Data Output

    3




    22



    CML-O



    Rx2p

    Receiver Non-Inverted Data

    Output



    3


    23


    GND

    Ground

    1

    1

    24

    CML-O

    Rx4n

    Receiver Inverted Data Output

    3




    25



    CML-O



    Rx4p

    Receiver Non-Inverted Data

    Output



    3


    26


    GND

    Ground

    1

    1

    27

    LVTTL-O

    ModPrsL

    Module Present

    3


    28

    LVTTL-O

    IntL

    Interrupt

    3


    29


    VccTx

    +3.3V Power supply   transmitter

    2

    2

    30


    Vcc1

    +3.3V Power supply

    2

    2

    31

    LVTTL-I

    LPMode

    Low Power Mode

    3


    32

    GN

    D

    Ground

    1                                1

    33

    CML-I                      Tx

    3p                             Transmitt

    er Non-Inverted   Data

    3

    34

    CML-I

    Tx3n

    Transmitter   Inverted Data Input

    3


    35


    GND

    Ground

    1

    1



    36



    CML-I



    Tx1p

    Transmitter   Non-Inverted Data

    Input



    3


    37

    CML-I

    Tx1n

    Transmitter   Inverted Data Input

    3


    38


    GND

    Ground

    1

    1

    1: GND is the symbol for signal and supply (power)   common for the QSFP56 module. All are common within the QSFP56 module and all   module voltages are referenced to this potential unless otherwise

    noted. Connect these   directly to the host board signal-common ground plane.

    2: Vcc   Rx, Vcc1 and Vcc Tx are the receiver and transmitter power supplies and shall   be applied concurrently. Requirements defined for the host side of the Host Edge Card Connector are listed in SFF-8679 Table 6. Recommended host board power supply filtering is shown in Figures 12. Vcc Rx, Vcc1

    and Vcc Tx may   be internally connected within the QSFP56 Module in any combination.


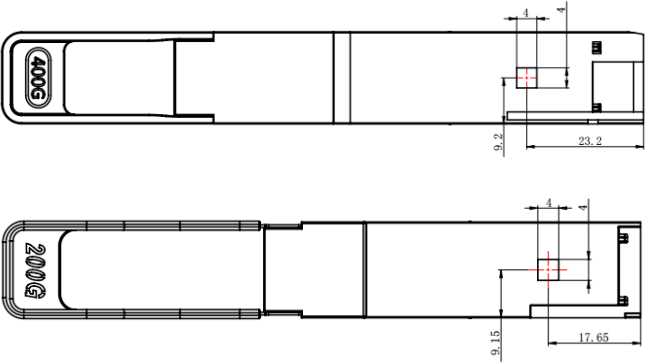

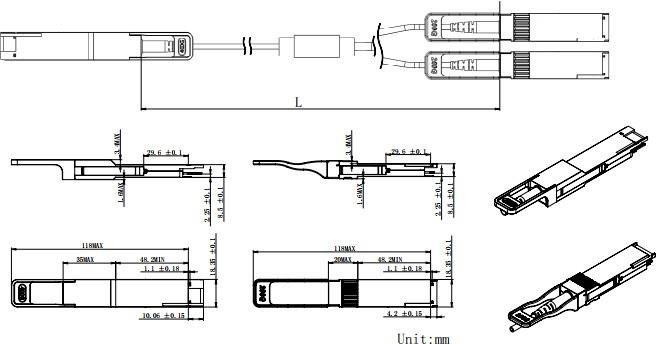

  • Mechanical Specifications



Related Products
