QSFP28 100G SR4

DOWNLOAD

Product Details
  • Product Features
    Supports 103.1Gbps aggregate bit rates
    Single 3.3v power supply
    Maximum link length of 100m links on OM4 multimode fiber
    Hot-pluggable QSFP28 footprint
    Case operating temperature range:0°C to 70°C
    Power dissipation < 3.5 W
    I2C Interface with Integrated Digital Diagnostic Monitoring
  • Applications
    100GBASE-SR4 Ethernet
  • Standards
    Compliant to QSFP28 MSA
    RoHS Compliant.
  • Ordering information


    Part Number

    Data rate

    Length

    Interface

    Temp.

    DDMI

    AQP100CC0850S10

    103.1Gbps

    100m

    MPO-12

    0~70°C

    Yes

    Note: xxx denotes the TRANSCEIVER length with unit meter.eg: 001 denotes 1m.




  • Performance Specifications



    Figure 1: Transceiver Block Diagram




    Figure 2: Application Reference Diagram

    Transmitter

    As shown in Figure 1, the transmitter path of the Transceiver contains a 4x25.78Gbps CAUI-4 electrical input with equalization (EQ) block, VCSEL laser drivers, VCSEL lasers and diagnostic monitor


    Receiver

    As shown in Figure 1, the receiver path of the Transceiver contains four PIN photodiodes, trans-impedance amplifiers (TIA) and 4x25.78G CAUI-4 compliant electrical output blocks.



    High Speed Electrical Signal Interface

    The interface between QSFP28 module and ASIC/SerDes is shown in Figure 2. The high speed signal lines are internally AC-coupled and the electrical inputs are internally terminated to 100 ohms’ differential. All transmitter and receiver electrical channels are compliant to C2M CAUI-4 specifications per IEEE 802.3bm.



    Control Signal Interface

    The control signal interface is compliant with QSFP28 MSA. The following pin is provided to control module or display the module status: ModSelL, ResetL, LPMode, IntL and ModPrsL. In addition, there is an industry standard two wire serial interface scaled for 3.3V LVTTL. The definition of control signal interface and the registers of the serial interface memory are defined in the Control Interface & Memory Map section.



    Handling and Cleaning

    Exposure to current surges and overvoltage events can cause immediate damage to the TRANSCEIVER module. Observe the precautions for normal operation of electrostatic discharge sensitive equipment; Attention shall also be paid to limiting TRANSCEIVER module exposure to conditions beyond those specified in the absolute maximum ratings.

    Optical connectors will be exposed as long as the port plug is not inserted, so always pay attention to protection. Each module is equipped with a port guard plug to protect the optical ports. The protective plug shall always be in place whenever the optical fiber is not inserted. Before inserting the optical fiber, it is recommended to clean the end of the optical fiber connector to avoid contamination of the module optical port due to dirty connector. If contamination occurs, use standard MPO port cleaning methods.


    Absolute Maximum Ratings

    Parameter

    Symbol

    Min.

    Typ.

    Max.

    Unit

    Note

    Storage   Temperature

    Ts

    -40

    -

    85

    ºC


    Relative   Humidity

    RH

    5

    -

    85

    %


    Power   Supply Voltage

    VCC

    -0.5

    3.3

    3.6

    V


    Recommended Operating Conditions

    Parameter

    Symbol

    Min.

    Typ.

    Max.

    Unit

    Note

    Case   Operating Temperature

    Tcase

    0

    -

    70

    ºC

    Without   air flow

    Power Supply Voltage

    VCC

    3.135

    3.3

    3.465

    V


    Power Supply Noise

    ICC

    -


    25

    mVpp


    Receiver Differential Data   Output Load



    100


    ohm


    Fiber length

    OM4



    100

    m


    General Electrical Characteristics

    Parameter

    Symbol

    Min.

    Typical

    Max.

    Unit

    Transceiver Power   Consumption (each end)




    3.5

    W

    Transceiver   Power Supply Total Current (each

    end)




    1061

    mA

    AC Coupling Internal   Capacitor



    0.1


    μF

    image.png image.png

    High Speed Electrical Input Characteristics

    Parameter

    Test

    Point

    Min.

    Typical

    Max.

    Unit

    Signaling Rate per Lane

    TP1


    25.78125±100ppm


    Gbps

    Differential   Peak-Peak Input Voltage

    tolerance

    TP1a

    900



    mV

    Differential   Input Return Loss

    TP1

    Equation(83E-5)



    dB

    Common   to Common Mode Input Return

    Loss

    TP1

    Equation(83E-6)



    dB

    Differential   Termination Mismatch

    TP1



    10

    %

    Single-ended   Voltage Tolerance Range

    TP1a

    -0.4


    3.3

    V

    DC   Common-mode Output Voltage

    TP1

    -350


    2850

    mV

    Module   Stressed Input Test

    TP1a





    Eye Width



    0.46


    UI

    Applied   Peak-Peak Sinusoidal Jitter



    Table   88-13



    Eye   Height



    95


    mV

    High Speed Electrical Output Characteristics

    Parameter

    Test Point

    Min.

    Typical

    Max.

    Unit

    Signaling Rate per Lane

    TP4


    25.78125±100ppm


    Gbps

    AC   Common-mode Output Voltage

    (RMS)

    TP4



    17.5

    mV

    Differential Peak-to-peak   Output Voltage

    TP4



    900

    mV

    Eye Width

    TP4

    0.57



    UI

    Eye   Height, Differential

    TP4

    228



    mV

    Vertical Eye Closure

    TP4



    5.5

    dB

    Differential Output Return   Loss

    TP4

    Equation(83E-2)




    Common   to Differential Mode

    Conversion   Return Loss

    TP4

    Equation(83E-3)




    Differential Termination Mismatch

    TP4



    10

    %

    Transition Time (20% ~80%)

    TP4



    12

    ps

    DC Common Mode Voltage

    TP4

    -350


    2850

    mV

    High Speed Optical Transmitter Characteristics

    Parameter

    Symbol

    Min.

    Typical

    Max.

    Unit

    Signaling   Rate, each Lane

    DR


    25.78125±100ppm


    Gbps

    Modulation   Format


    NRZ


    Center   Wavelength

    λ

    840


    860

    nm

    RMS Spectral Width

    λrms



    0.6

    nm

    Average   Launch Power, each Lane

    Pavg

    -6


    2.4

    dBm

    Outer   Optical Modulation Amplitude(OMA),

    each   Lane

    Poma

    -6.4


    3

    dBm

    Launch Power in OMA minus   TDEC

    OMA- TDEC

    -7.3



    dBm

    Transmitter   and Dispersion Eye Closure (TDEC),

    each   Lane

    TDEC



    4.3

    dB

    Average   Launch Power of OFF Transmitter, each

    Lane

    Poff



    -30

    dBm

    Extinction Ratio, each Lane

    ER

    3



    dB

    Optical   Return Loss Tolerance

    ORL



    12

    dB

    Encircled Flux

    EF

    ≥86% at 19 mm

    ≤30% at 4.5 mm


    Transmitter Eye Mask Definition {X1, X2, X3, Y1, Y2, Y3} Hit Ratio 1.5 x   10-3 Hit per

    Sample(Below)




    {0.3, 0.38,   0.45, 0.35, 0.41, 0.5}



                         Figure 6: Transmitter eye mask definition

    High Speed Optical Receiver Characteristics

    Parameter

    Symbol

    Min.

    Typical

    Max.

    Unit

    Signaling   Rate, each Lane

    DR


    25.78125±100ppm


    Gbps

    Modulation   Format


    NRZ


    Center   Wavelength

    λ

    840

    850

    860

    nm

    Damage   Threshold*18


    3.4



    dBm

    Average   Receiver Power, each Lane


    -10.3


    2.4

    dBm

    Receiver   Power, each Lane (OMA)




    3

    dBm

    Receiver   Reflectance




    -12

    dB

    Stressed Receiver Sensitivity(OMA), each Lane




    -5.2

    dBm

    Receive   Sensitivity (OMA), each Lane




    -8

    dBm

    LOS   Assert

    LOSA

    -20



    dBm

    LOS   De-Assert

    LOSD



    -12

    dBm

    LOS Hysteresis

    HY

    0.5



    dB

    Conditions   of Stressed Receiver Sensitivity test






    Stressed   Eye Closure (SEC), Lane under Test


    4.3

    dB

    Stressed   Eye J2 Jitter, Lane under Test


    0.39

    UI

    Stressed   Eye J4 Jitter, Lane under Test




    0.53

    UI

    OMA of each Aggressor Lane


    3

    dBm

    Stressed Receiver Eye Mask   Definition {X1, X2,

    X3, Y1, Y2, Y3} Hit Ratio   5 x 10-5  Hit per Sample


    {0.28,   0.5, 0.5, 0.33, 0.33, 0.4}



         Figure 7: LOS hysteresis definition

    Electrostatic Discharge (ESD)

    The AQP100CC0850S10 is compatible with the ESD requirements described in the Regulatory Compliance Table. However, in the normal processing and operation of TRANSCEIVER, the following two types of situations need special attention.

    Case I: Before inserting the TRANSCEIVER into the rack meeting the requirements of QSFP28 MSA, ESD preventive measures must be taken to protect the equipment. For example, the grounding wrist strap, workbench and floor should be used wherever the TRANSCEIVER is handled.

    Case II: After the TRANSCEIVER is installed, the electrostatic discharge outside the chassis of the host equipment shall be within the scope of system level ESD requirements. If the optical interface of the TRANSCEIVER is exposed outside the host equipment cabinet, the TRANSCEIVER may be subject to equipment system level ESD requirements.

    Electromagnetic Interference (EMI)

    Communication equipment with TRANSCEIVER is usually regulated by FCC in the United States and CENELEC EN55032 (CISPR 32) in Europe. The compliance of AQP100CC0850S10 with these standards is detailed in the regulatory compliance table. The metal shell and shielding design of AQP100CC0850S10 will help equipment designers minimize the equipment level EMI challenges they face.

    Flammability

    AQP100CC0850S10 transceiver meets UL certification requirements, its constituent materials have heat and corrosion resistance, and the plastic parts meet UL94V-0 requirements.

    QSFP28 Transceiver Electrical Pad Layout


    Figure 8: QSFP28 Module Pinout

    Pin Assignment

    Pin

    Logic

    Symbol

    Description

    Plug

    Sequence4

    Notes

    1


    GND

    Ground

    1

    1

    2

    CML-I

    Tx2n

    Transmitter Inverted Data Input

    3


    3

    CML-I

    Tx2p

    Transmitter Non-Inverted Data Input

    3


    4


    GND

    Ground

    1

    1

    5

    CML-I

    Tx4n

    Transmitter Inverted Data Input

    3


    6

    CML-I

    Tx4p

    Transmitter Non-Inverted Data Input

    3


    7


    GND

    Ground

    1

    1

    8

    LVTTL-I

    ModSelL

    Module Select

    3


    9

    LVTTL-I

    ResetL

    Module Reset

    3


    10


    VccRx

    +3.3V Power Supply Receiver

    2

    2

    11

    LVCMOS- I/O

    SCL

    2-wire Serial Interface Clock

    3


    12

    LVCMOS- I/O

    SDA

    2-wire Serial Interface Data

    3


    13


    GND

    Ground

    1

    1

    14

    CML-O

    Rx3p

    Receiver Non-Inverted Data Output

    3


    15

    CML-O

    Rx3n

    Receiver Inverted Data Output

    3


    16


    GND

    Ground

    1

    1

    17

    CML-O

    Rx1p

    Receiver Non-Inverted Data Output

    3


    18

    CML-O

    Rx1n

    Receiver Inverted Data Output

    3


    19


    GND

    Ground

    1

    1

    20


    GND

    Ground

    1

    1

    21

    CML-O

    Rx2n

    Receiver Inverted Data Output

    3


    22

    CML-O

    Rx2p

    Receiver Non-Inverted Data Output

    3


    23


    GND

    Ground

    1

    1

    24

    CML-O

    Rx4n

    Receiver Inverted Data Output

    3


    25

    CML-O

    Rx4p

    Receiver Non-Inverted Data Output

    3


    26


    GND

    Ground

    1

    1

    27

    LVTTL-O

    ModPrsL

    Module Present

    3


    28

    LVTTL-O

    IntL

    Interrupt

    3


    29


    VccTx

    +3.3V Power Supply Transmitter

    2

    2

    30


    Vcc1

    +3.3V Power Supply

    2

    2

    31

    LVTTL-I

    LPMode

    Low Power Mode

    3


    32


    GND

    Ground

    1

    1

    33

    CML-I

    Tx3p

    Transmitter Non-Inverted Data Input

    3


    34

    CML-I

    Tx3n

    Transmitter Inverted Data Input

    3


    35


    GND

    Ground

    1

    1

    36

    CML-I

    Tx1p

    Transmitter Non-Inverted Data Input

    3


    37

    CML-I

    Tx1n

    Transmitter Inverted Data Input

    3


    38


    GND

    Ground

    1

    1

    1: GND is the symbol for   signal and supply (power) common for the module. All are common within the   module and all module voltages are referenced to this potential unless   otherwise noted. Connect these directly to the host board signal- common   ground plane.

    2: VccRx, Vcc1 and VccTx   are applied concurrently and maybe internally connected within the module in   any combination.

    Vcc contacts in SFF-8662   and SFF-8672 each have a steady state current rating of 1A.


    The host board should use a power supply filtering network equivalent to that shown in Figure 7.

    Any voltage drop across a filter network on the host is counted against the host DC set point accuracy specification. Inductors with DC resistance of less than 0.1 ohm should be used in order to maintain the required voltage at the host edge card connector. It is recommended that the 22 μF capacitors each have an equivalent series resistance of 0.22 ohm.

    The specification of the host power supply filtering network is beyond the scope of this specification, particularly because of the wide range of QSFP+ module Power Classes. Each power connection has a supply filter for reducing high frequency noise and ripple from host-to-module. During a hot-plug event, the filter network limits any voltage drop on the host supply so that neighboring modules sharing the same supply stay within their specified supply voltage limits.



  • Mechanical Specifications


    Figure 10: Mechanical Package Outline (All Dimensions in mm)

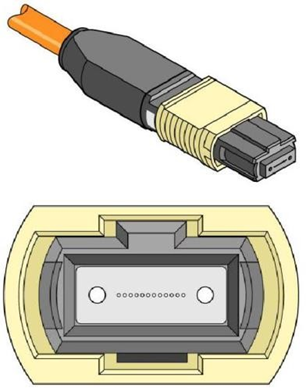

         Figure 11: Optical Patch Cord
