400G Breakout AOC

Accelight’s QSFP56-DD to 2xQSFP56 AOC is designed for use in 400 Gigabit Ethernet links over MMF up to 30m. QSFP56-DD end of the AOC module has 8 independent electrical input/output channels operating at 53.125Gbps per channel. Each QSFP56 end of the AOC module has 4 independent electrical input/output channels operating at 53.125Gbps per channel. It consists of two transmitter/receiver units, with each operating on 850nm wavelength. The electrical interface of the module is compliant with the 400GAUI-8/200GAUI-4 interface as defined by IEEE 802.3bs, and compliant with QSFP56- DD/QSFP56 MSA.

DOWNLOAD

Product Details

Product Features

Supports 425Gbps

Single 3.3V Power Supply

QSFP56-DD End Power dissipation < 10W

Each QSFP56 End Power Dissipation <5W

Integrated 850nm VCSEL array and PD array

RoHS compliant

QSFP56-DD/QSFP56 MSA Compliant

QSFP56-DD: 8x26.5625GBd (PAM4) Electrical interface

QSFP56: 4x26.5625GBd (PAM4) Electrical interface

I2C interface with integrated Digital Diagnostic Monitoring

Commercial case temperature range of 0°C to 70°
Applications

Data Center

Ethernet

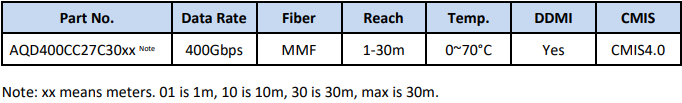

Ordering information
